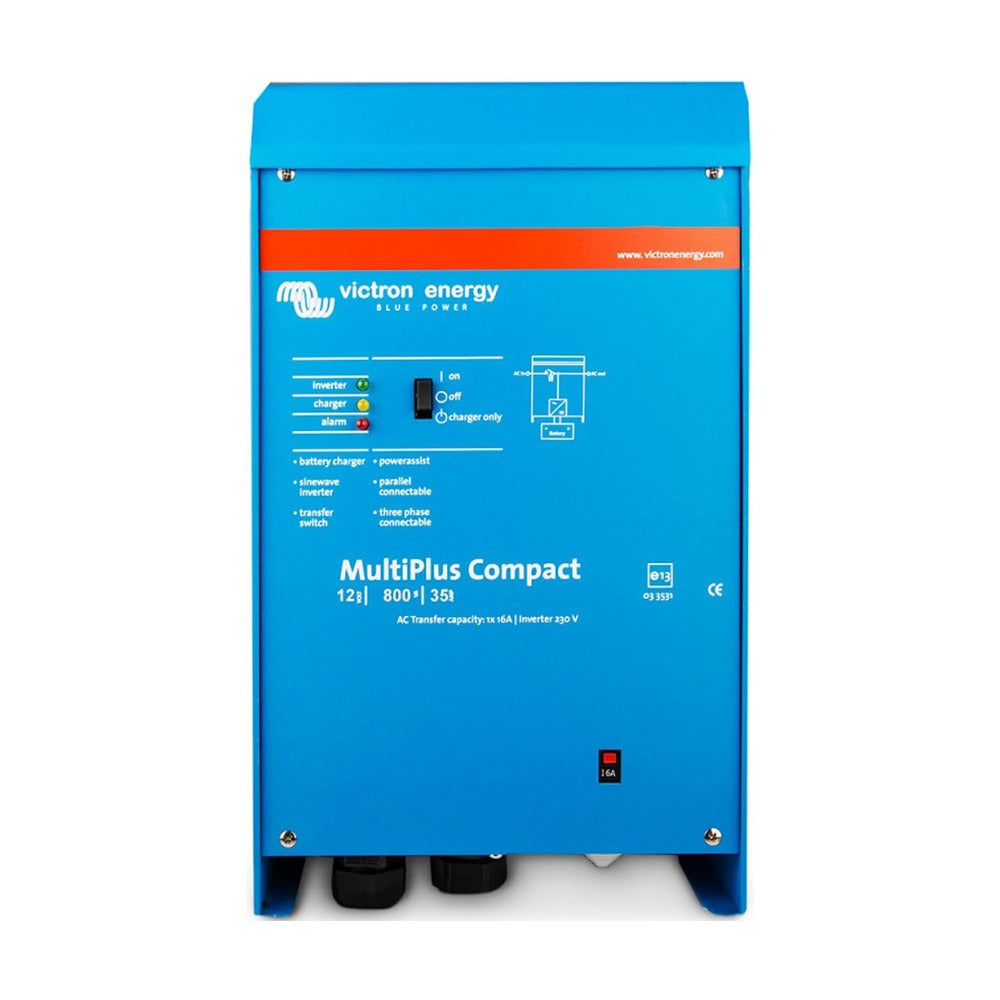

Victron MultiPlus Compact 12/800/35-16 230V VE.Bus Inverter Charger
Victron
Recommended Retail Price
£594.00 Inc. VAT
Online Price (inc. VAT)
£457.50
Sorry, this item is out of stock - Please contact us if you would like to order this on back order as our inventory is changing all the time and we might be able to get this in for you at short notice
- Description
- Ask a Question
- Reviews
- Delivery
- Returns
- Voltage: 12V
- Cont. Output Power at 25C: 800VA
- Peak Power: 1600W
- Output AC Voltage: 230V
- Transfer Switch: 16A
- Charge Current House Battery: 35A
- Charge Current Starter Battery: 4A
- Protection Category: IP21
- Efficiency: 92%
- Bluetooth Compatible: No
- Dimensions: 375 x 214 x 110mm
- Weight: 10Kg
- Warranty: 5 Years
The MultiPlus as the name suggests is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter adaptive charging hybrid PowerAssist technology plus multiple system integration features.
Features
Two AC Outputs
The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more).
Virtually unlimited power thanks to parallel operation
Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units for example will provide 25 kW / 30 kVA output power with 720 Amps charging capacity.
Three phase capability
In addition to parallel connection three units of the same model can be configured for three phase output. But that\'s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.
PowerControl Dealing with limited generator shore side or grid power
The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging thus preventing the generator or shore supply from being overloaded.
PowerAssist Boosting the capacity of shore or generator power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces the spare power is used to recharge the battery.
Solar energy: AC power available even during a grid failure
The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.
System configuring
In case of a stand-alone application if settings have to be changed this can be done in a matter of minutes with a DIP switch setting procedure.
Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
Off grid grid interactive and self-consumption applications involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
On-site Monitoring and control
Several options are available: Battery Monitor Multi Control Panel Color Control GX or other GX devices smartphone or tablet (Bluetooth Smart) laptop or computer (USB or RS232).
Remote Monitoring and control
Color Control GX or other GX devices. Data can be stored and displayed on our VRM (Victron Remote Management) website free of charge.
Remote configuring
When connected to the Ethernet systems with a Color Control GX or other GX device can be accessed and settings can be changed remotely
