V6 24V Motor Gearbox Assembly 69000407 by LEWMAR

LEWMAR

Recommended Retail Price
£4,770.89 Inc. VAT

Online Price (inc. VAT)
£3,578.16

Part Number: LEW 69000407
Out Of Stock - Available to Back Order ONLY - Lead Times May Vary.

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

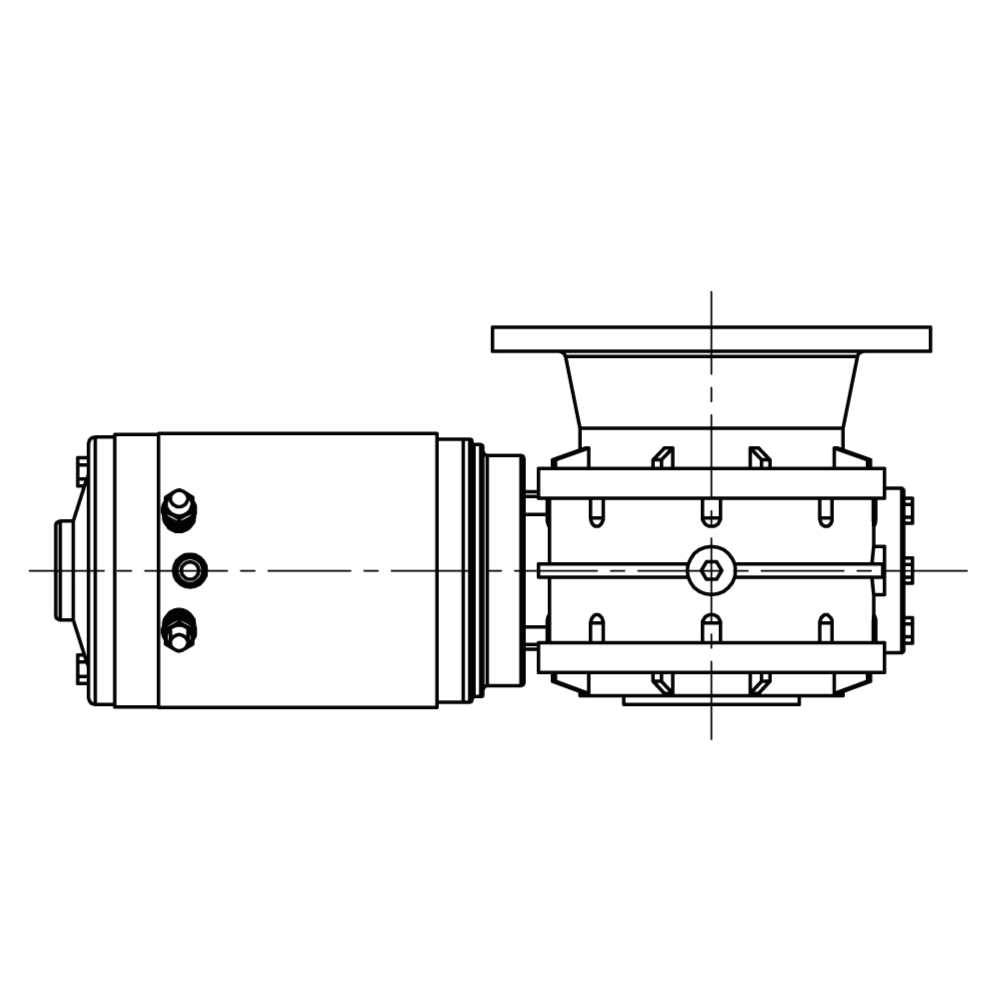

V6 24V Motor Gearbox Assembly 69000407 by LEWMAR

Range of spare parts for Lewmar's V6 windlass

Part Number Description Items Included (Qty)
66000692 Blank Cover with Stripper 31(1), 12(2)
66000688 Top Cap (Gypsy Only) 29(1), 25(1)
66000687 Top Nut (Gypsy/Drum) 27(1), 28(1)
66000686 Cone (Gypsy Only) 24(1), 25(2), 26(1)
66000685 Cone (Gypsy Drum) 24(1), 25(1)
66000684 Drum 23(1)
68000905 14 mm Gypsy 22(1)
68000906 1/2” Gypsy 21(1)
68000904 12 mm Gypsy 20(1)
68000903 10 mm Gypsy 19(1)
66000679 Mainshaft (Gypsy Only) 18(1), 15(1), 16(1), 17(2)
66000678 Mainshaft (Gypsy/Drum) 14(1), 15(1), 16(1), 17(2)
66000677 R/H Chain Cover 13(1), 12(2)
66000676 L/H Chain Cover 11(1), 12(2)
66000675 Mounting 7(6), 8(1), 9(6), 10(6)
66000674 Base 1(1), 2(1), 3(1), 4(6), 5(1), 6(1)
69000407 24V Motor Gearbox
69000408 Hydraulic Motor Gearbox
69000409 Hi-Pressure Hyd Motor Gbx




Specification:
Motor Power Max Pull (kg) Working Load Limit(kg) Max Line Speed (m/min) Normal Current Draw Circuit Breaker
2000 W 1818 606 18 90 Amp 150 Amp
Motor Power Max Pull (lb) Working Load Limit(lb) Max Line Speed (ft/min) Normal Current Draw Circuit Breaker
2000W 4000 1333 59 90 Amp 150 Amp

V1-V6 Windlass Product Manual Iss.11 (English)

Ref 65001201 Iss.11

Product Literature

[.pdf]
