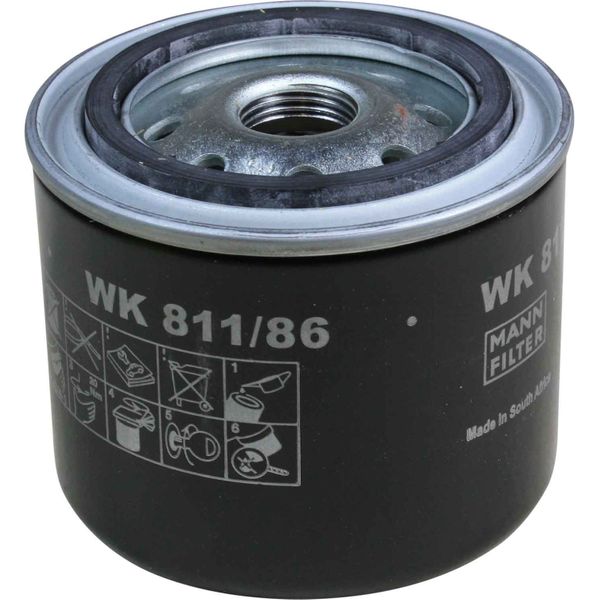

Spin On Fuel Filter Element For Volvo Penta, Kubota & Beta Engines 103954

Mann

Recommended Retail Price
Inc. VAT

Online Price (inc. VAT)
£18.18

Part Number: AS 103954

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

p>This Mann WK 811/86 spin on fuel filter element is suitable for Volvo Penta MD2010, MD2010A, MD2010B, MD2020, MD2020A, MD2020B, MD2030, MD2030A, MD2030B, MD2040, MD2040A, MD2040B and MD2040C engines, some Kubota and Beta Marine engines as well as Cummins B3.3 and Perkins 102-04, 102-05, 103-06, 103-07, 103-09, 103-10, 103-12, 103-13, 103-15, 104-19 and 104-22 engines./p>

p>The engine fuel filter element will replace the following elements: Kubota 16631-43560, Cummins C6003117460, Perkins 130 366 020, 130 366 120, 4429491, 130306190, 130360220 and 2208175, Volvo 861477-8, Onan 1492229 and 1402229./p>

br />p>The WK 811/86 fuel filter element will also replace: Agco 7825516, 3706283M91, 4166014, 33-0143006, Case Construction 282203A1, Caterpillar 150-4142, 3I-1120, 130-366120, 3I1268, 972378, Daihatsu 23302-56022, 23302-56021, Doosan 8944147963S, K9009932, Dynapac 376555, Fiat-Hitachi 4265247, Furukawa 5132400091, Gehl 182134, 78853, 78856, 113890, GMC 94414796, Hino 2330B56030, 2330B56031, 2330D54071, 234011411, 2330D-56031, 2330D-56030, Hitachi 4S00203, 4S00245, 4S00246, AT280316, 42061301, 424691, 4285634, L4206130, L4395946, 42856431, 4206130, 4395946, 4265247, 8941434790, 4183854, 4285643, 76595561, Hyster 3006160, 324347, Hyundai 8944147963, Ingersoll-Rand 85448454, 54381306, Isuzu 97720530, 97780230, X13240018, 2945611100, 5876100110, 13200023, 13200119, 8941329471, 8941538500, 2080102021, 5873103350, X-13240-015, 13240-015, 5-13240-034-0, 8-94132-947-0, 5-13240-023, 2-90654-910-0, 8-94414-796-0, J.C.Bamford 02/800025, Jacobsen 557619, JLG 7026871, 7022113, 7023641, John Deere AT280316, Jungheinrich 501 3614 3, Kobelco 1894143-4790, 2451U221-2, 2451U3092, VG16403Z9000, Koehring 730-9075, Komatsu 600-311-7441, 600-311-6620, 600-211-6120, 600-211-6120L, 20M01R2261, 3580411130, 1324002300, 6003116000, Link-Belt KNH0325, KNH0404, Manitou 563027, Massey-Ferguson 3706283M91, Mazda 0559-23570, Mc Cormick 130366120, Mecalac E741369300, Takeuchi I-8941434790, TCM 2080102021, Thomas 21677, Toyota 23302-56021, 23302-56021-2, 23303-53031, 23303-56030, 23303-56031, 23202-56021-2SA, 23302-56022, Weidemann 574 700 2001 and Yale 900550814./p>

Brand Mann
Diameter Filter OD: 82mm, Seal ID: 57mm, Seal OD: 65mm
Height 74mm
Model WK 811/86
Replaces Kubota 16631-43560, Cummins C6003117460, Perkins 130 366 020, 130 366 120, 4429491, 130306190, 130360220, 2208175, Volvo 861477-8, Onan 1492229, 1402229. See The Description For More
Style Description Spin-On Element
Suitability Volvo Penta MD2010, MD2010A, MD2010B, MD2020, MD2020A, MD2020B, MD2030, MD2030A, MD2030B, MD2040, MD2040A, MD2040B & MD2040C, Some Kubota & Beta Marine Engines. Cummins B3.3 & Perkins 100 Series Engines
Thread Size 3/4" - 16 UNF
