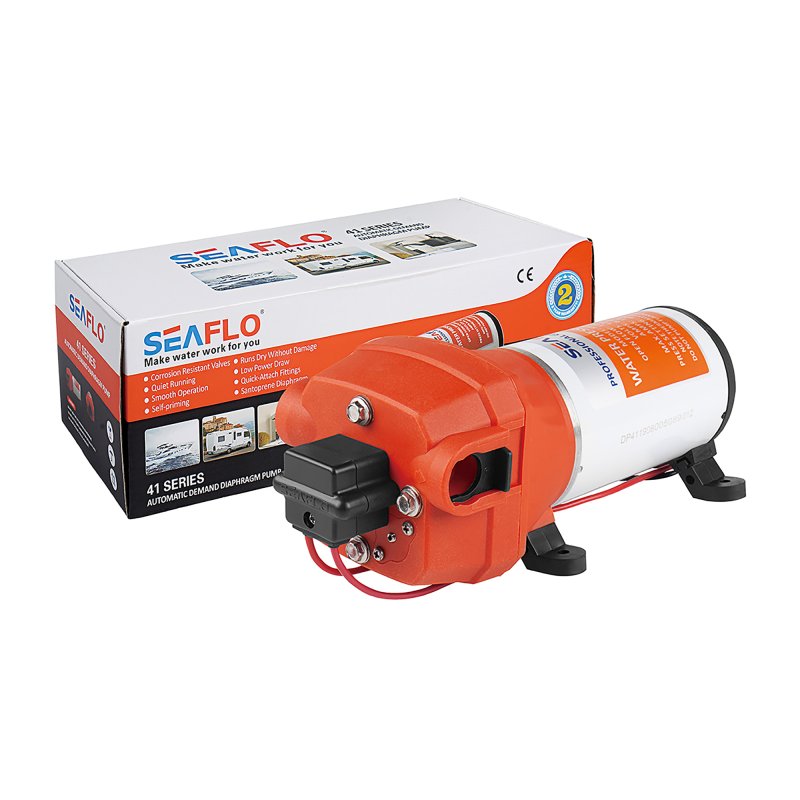

SEAFLO Pressure Pump 41 Series 24V 4.5 gpm 40 psi

SEAFLO

Recommended Retail Price
£163.25 Inc. VAT

Online Price (inc. VAT)
£122.43

Part Number: DP204504041

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

41 Series Diaphragm Pumps(Long)

freshwater pump,24v water pump ,marine water pump

Voltage:12V/24V/115V/220V

Open Flow:4.5GPM / 17.0LPM

Shut-off Pressure:40PSI / 2.8BAR

Priming Capabilities:6 feet (1.8 m) suction lift

Max Recommended Temperature:140° F (60° C)Max.

Material:EPDM(Valves) / Santoprene(Diaphragm)

Ports:Quick Attach

The 41-Series pump provides high volume water flow with reduced pump cycling, thanks to the quad?chamber diaphragm and internal bypass. These models are designed to run on water systems with no accumulator tank necessary, and up to five outlets. It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 4.5 gallons per minute, suitable in a system of up to five fixtures. The 41-Series pumps are self-priming, and can run dry without damage, performance reliable and low current.This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.They're easy to install service and winterize with quick snap-in port fittings.



MORE FEATURES & BENEFITS

•  Up to 4.5 GPM

•  Can supply up to 4 fixtures

•  Quick-Connect fittings

•  Self priming

•  Run dry safe

•  On-demand use

•  Industry Standard mounting pattern

•  Rubber mounting-feet

•  Can be used for Fresh & Salt Water

•  Adjustable pressure switch

•  16 AWG, 4.5"(11.4 cm) long Leads

•  2 Year Warranty

•  Meets or exceeds RoHS, SGS, and ISO standards


STANDARD PUMP CONFIGURATIONS

Model Voltage

Open Flow
(GPM/LPM)

Max Draw

Shut-off Pressure
(PSI/BAR)

SFDP1-045-040-41 12V 4.5 / 17.0 12.13 40 / 2.8
SFDP2-045-040-41 24V 4.5 / 17.0 6.07 40 / 2.8
SFDPA1-045-040-41 115V 4.5 / 17.0 1.54 40 / 2.8
SFDPA2-045-040-41 220V 4.5 / 17.0 0.77 40 / 2.8



4.5GPM / 40PSI

PRESSURE

12V

24V

FLOW

CURRENT

FLOW

CURRENT

PSI

BAR

GPM

LPM

AMPS

GPM

LPM

AMPS

0 0 4.33 16.40 5.90 4.54 17.20 2.94
20 1.38 3.49 13.20 9.93 3.8 14.40 5.22
25 1.73 3.43 13.00 10.48 3.43 13.00 5.31
30 2.07 2.59 9.80 11.48 2.85 10.80 5.48
35 2.42 2.06 7.80 12.48 2.32 8.80 5.72
40 2.76 0 0 13.48 0 0 6.07



SHIPPING INFORMATION

Unit Weight

5.36 lbs (2.43 kg)

Selling Unit Size (L x W x H)

For additional info, click below:

Manual Download
