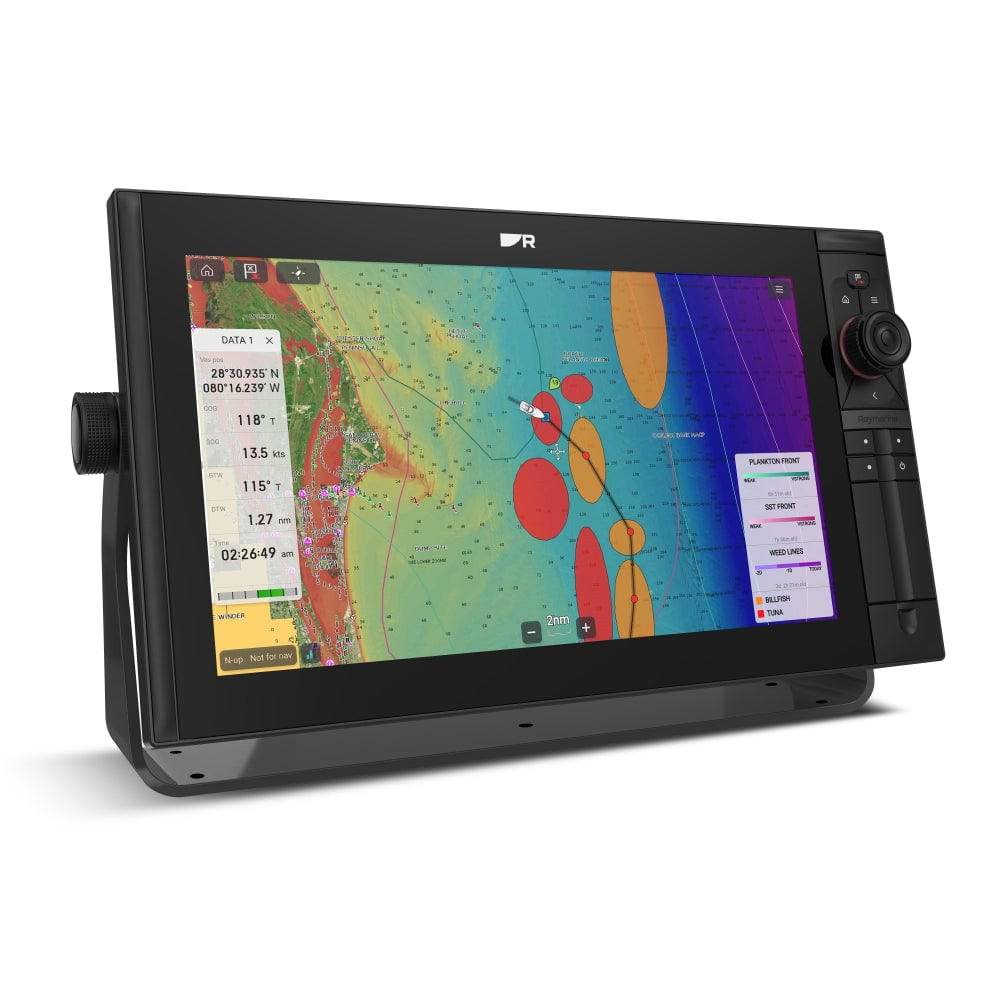

Raymarine Axiom2 Pro 16 RVM Multifunction 16" Display
Raymarine
Recommended Retail Price
£5,945.00 Inc. VAT
Online Price (inc. VAT)
£5,771.22
Sorry, this item is out of stock - Please contact us if you would like to order this on back order as our inventory is changing all the time and we might be able to get this in for you at short notice
- Description
- Ask a Question
- Reviews
- Delivery
- Returns
Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.
- Fast 6-core processor
- 16" HydroTough nano-coated water replellant touchscreen
- HybridTouch touchscreen and keypad
- Built-in RealVision MAX CHIRP and dual channel 1kW CHIRP sonar
- Smart backlighting and an ambient light sensor automatically adjusts display brightness for day and evening
- Create an Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems
Technical Specifications
XPower | |
---|---|
Power Consumption @ 12V DC | 42.36W |
Power Consumption @ 24V DC | 40.8W |
Nominal Supply Voltage | 12/24V DC |
Enviromental | |
---|---|
Waterproof Rating | IPX6, IPX7 |
Physical | |
---|---|
Size (Diagonal) | 15.6" |
Dimensions (Flush/Surface Mounted) | 258 x 452 x 240.4mm (10.16" x 17.8" x 9.46") |
Connections | |
---|---|
Digital Video & Audio Out | HDMI Out Micro connector type D |
External GPS Antenna Connection | TNC connector |
Accessory connection | USB Micro B (rear - Charging, external storage device or RCR-SD/USB Accessory (A80440) |
Ethernet connection | Raynet (10/100/1,000 Mbits/s) x 2 |
External Storage | MicroSDXC card slot x 2 (on front) |
NMEA 2000 connection | DeviceNet connector |
Analog video connections | BNC Analog video input (on power cable) |
Wireless connections | Bluetooth: V4.0Wi-Fi: 802.11/b/g/n |
Transducer connection | 25 pin RealVision type connector11-pin 1kW Connector |
Audio Connections | Left and Right RCA connectors via Power/Video/Audio cable |
GPS | |
---|---|
GNSS compatibility | GPS, Galileo, GLONASS, Beidou |
Sonar | |
---|---|
Channels | 11-pin 1kW connector: 50kHz Low CHIRP, 200kHz High CHIRP25-pin RealVision connector: CHIRP conical sonar, DownVision, SideVision, Realvision MAX 3D |
Depth range | 11-pin 1kW connector:
|
Lighting | |
---|---|
Illumination | 1,300nits / 1,300 cd/m2 |
Storage | |
---|---|
Internal storage | 64GB Solid State |
Offshore Adventure Guide
Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan an offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch, a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.
Power That Pushes The Limits
Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.
Ready For All Conditions
Axiom 2 Pro's HydroTough nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.
Confident Control
Plan and plot course with HybridTouch control and take command with reliable keypad control when seas are rough.
Customize the Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.
Find More Fish With RealVision MAX
RealVision MAX ups the fish-finding game with increased range, better resolution, and sharper fish targets.
Axiom 2 Pro RVM models have the RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.
One Display - Endless Possibilities
Discover More - Created from official hydrographic chart sources, Trust LightHouse Charts for maximum readability, intuitive navigation, and superior quality.
Upgrade Awareness - Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
Turn Night Into Day - FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping all crew safe and secure.
Make Smarter Decisions - Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
Advanced Engine Integration - Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.
Stream, Watch, and Listen - Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.
Smarter Boating
Stay Connected - Add the YachtSense Link router and keep the system connected onboard and off with the Raymarine mobile App.
Axiom on a Smartphone - Built-in Wi-Fi allows the viewing and control of the Axiom 2 Pro from a phone or tablet with the Raymarine Mobile App.
Do More with LightHouse Apps - Expand the capabilities of our Axiom 2 Pro with third-party apps from our marine technology partners.
Create A Powerful Navigation System
Two RayNet Ethernet ports and NMEA2000 give the flexibility to create an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.
In The Box
- Display unit
- Suncover
- Gasket
- Grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
- Mounting fixings x4
- Documentation
- Power/Video/Audio cable 1.5 m (4.92 ft)
