Mastervolt Mass Battery Charger with 230V Input (48V / 25A) M40040256 40040256


Recommended Retail Price
£1,208.39 Inc. VAT

Online Price (inc. VAT)

Part Number: AQ M40040256

  • COVID 19 Disruption
  • Description
  • Questions
  • Reviews
  • Delivery
  • Returns
  • Age Verification


Due to the ongoing and evolving "LOCKDOWN" situation in place since early 2020, we are anticipating a small delay in processing of orders and subsequent shipping due to a reduced workforce, in both our warehouses, and those of our suppliers.

Whilst we are trying our best to continue in a business as usual, we must again close our retail showroom doors temporarily to support the Governments COVID19 Strategy. Throughout this temporary closure we will still be shipping items from our warehouses and those of our suppliers, but it may at times be subject to a small delay.

The quickest way to get an answer to any questions you may have is to email us on Alternatively should you wish to actually speak to a member of our team, please call us on 02087884587 and Choose Option 1.

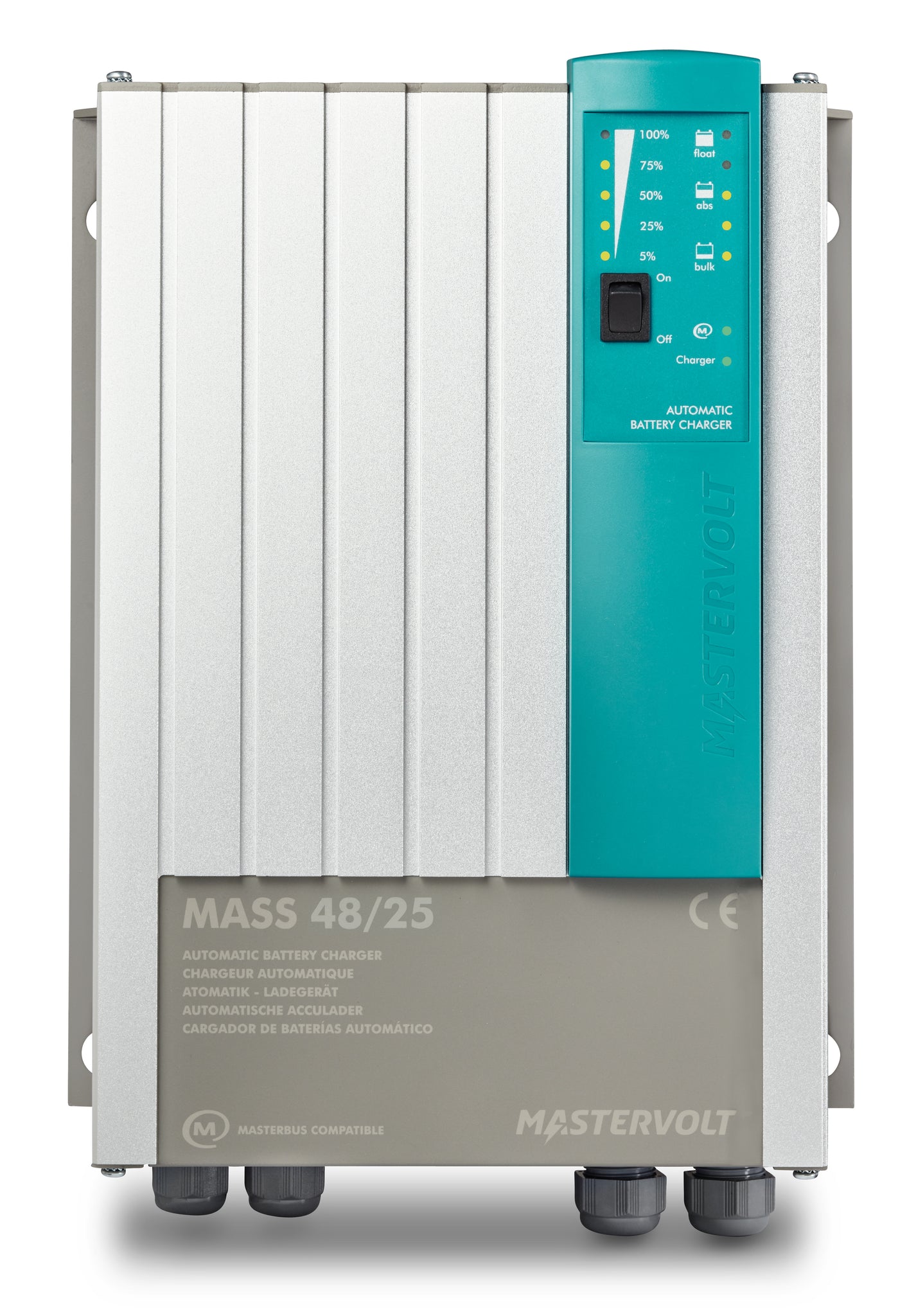

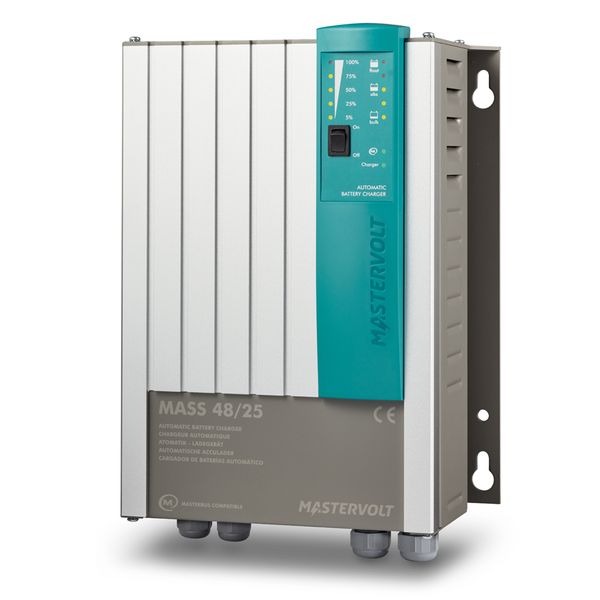

The Mastervolt Mass battery charger is designed to deliver faultless performance in the toughest conditions, providing a stable power supply to every type of battery used in boating, even those that are flat. The unit it made from lightweight stainless steel, in an anodised aluminium casing. The internal components have been coated to prevent damage from damp or condensation, ensuring long life and less chance of failure. The Mass battery charger is also insensitive to electromagnetic effects of other devices you may have on board. They have been tested at full capacity without stopping and have a MTBF (Mean Time Between Failures) of 180,000 hours.

The 3-STEP+ charging memory ensures more power and a longer life for your batteries. Mass chargers feature a Current Control function which prevents the fuses being blown when the voltage drops. It is also MasterBus compatible, meaning they can be connected easily to a MasterBus system where you can operate and monitor all Mastervolt devices in one panel. The Mastervolt Mass series of battery chargers are designed to be GMDSS (Global Maritime Distress and Safety System) compatible so you can comply with SOLAS (Safety Of Life At Sea) guidelines.

General specifications

Nominal output voltage : 48 V

Total charge current: 25 A at 57 V

Number of battery outlets: 1

Battery bank size: 100-500 Ah

Nominal input voltage: 230 V (180-265 V), 50/60 Hz

Power supply mode: yes

Galvanisedanic isolation: yes

Display/read-out: LED display

Dimensions, hxwxd: 340 x 261 x 130mm (13.4 x 10.3 x 5.1 inch)

Weight: 4.6 kg (10.1 lb)

Compliance: CE, ABYC A-31, RRR, RMRS

Technical specifications

Charge characteristic: IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion

Charge voltage Bulk: 57 V

Charge voltage Absorption: 57 V

Absorption time: 4 hours

Charge voltage Float (wet batteries): 53 V

Charge voltage Float (Gel/AGM batteries): 55.2 V

Temperature sensor: yes (included)

DC voltage compensation: yes

Power consumption (DC side): < 1 mA

Full load consumption (230 V AC): 1800 W

Current Control function: yes, through MasterBus

Power factor control: > 0.95

Temperature range (ambient temp.): -25 °C to 80 °C, derating > 40 °C (-13 °F to 176 °F)

Cooling: vario fan

Protection degree: IP23

Protections: over temperature, over load, short circuit, high/low battery voltage

MasterBus compatible: yes

Charger Status Interface (alarm contact): yes


Brand Mastervolt
Voltage 48V
Height 340mm (13.4")
Width 261mm (10.3")
Depth 130mm (5.1")
Weight 4.6 kg (10.1 lb)
Temperature Range Ambient Temperature: -25 °C to 80 °C, derating > 40 °C (-13 °F to 176 °F)
Protection Rating IP23

Key Features

Designed withstand heavy vibrations and shocks.

Lightweight, stainless steel, anodised aluminium casing.

Coating of internal components prevents damage from damp or condensation to ensure a longer lifespan.

Insensitive to electromagnetic effects from other devices.

Suitable for every type of battery, also charges flat batteries.

Delivered as standard with temperature sensor.

Full power at temperatures of up to 45˚C.

Load capacities from 80 to 1000 Ah or more.

Stable and ripple free power supply, even without batteries.

The Current Control function prevents the breakdown of fuses when the voltage drops.

Parallel switching possible using multiple battery chargers.

Connections in accordance with CE, ABYC A-31 and IEC60945.

GMDSS models and panels available.

Certified by RRR and RMRS.
