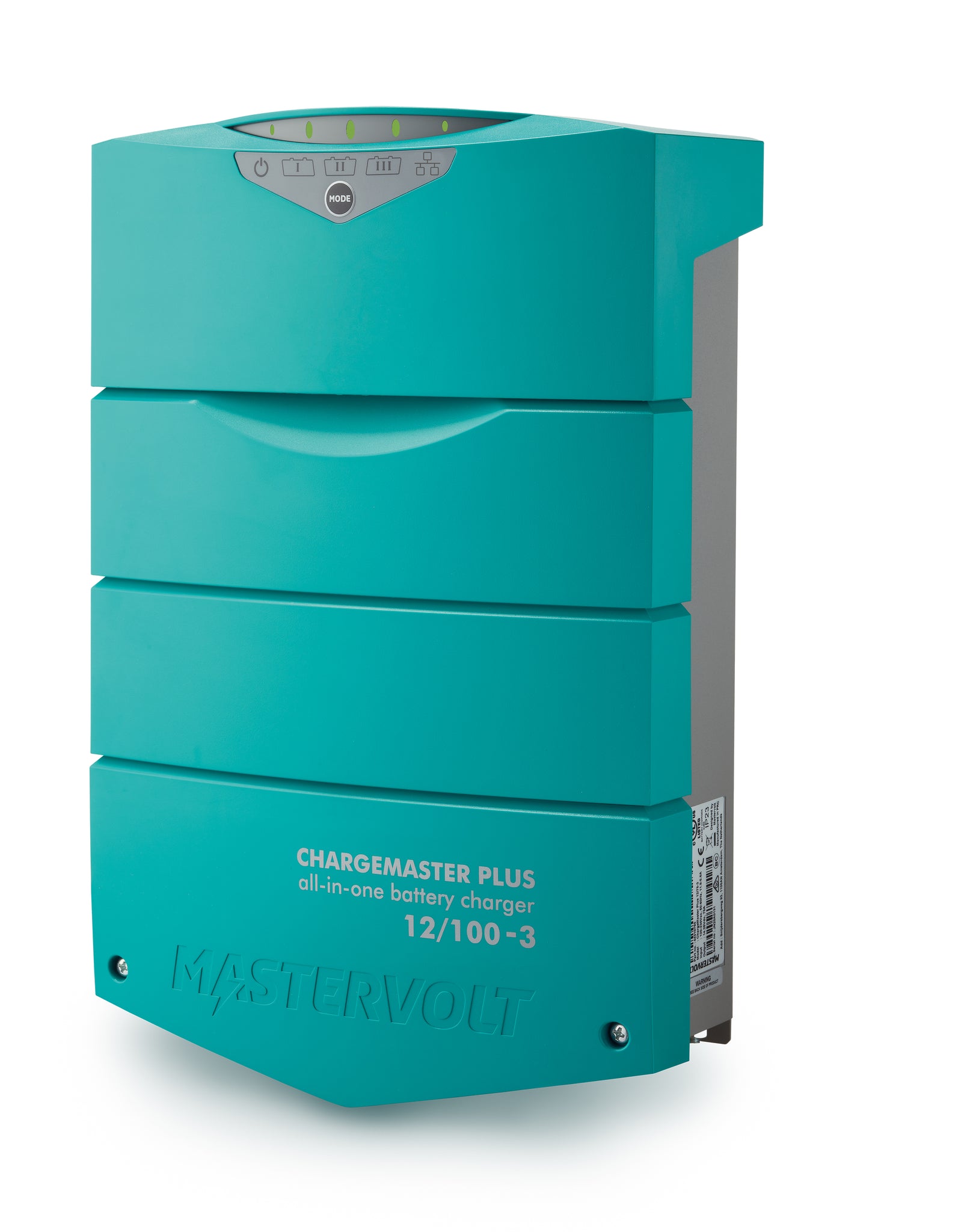

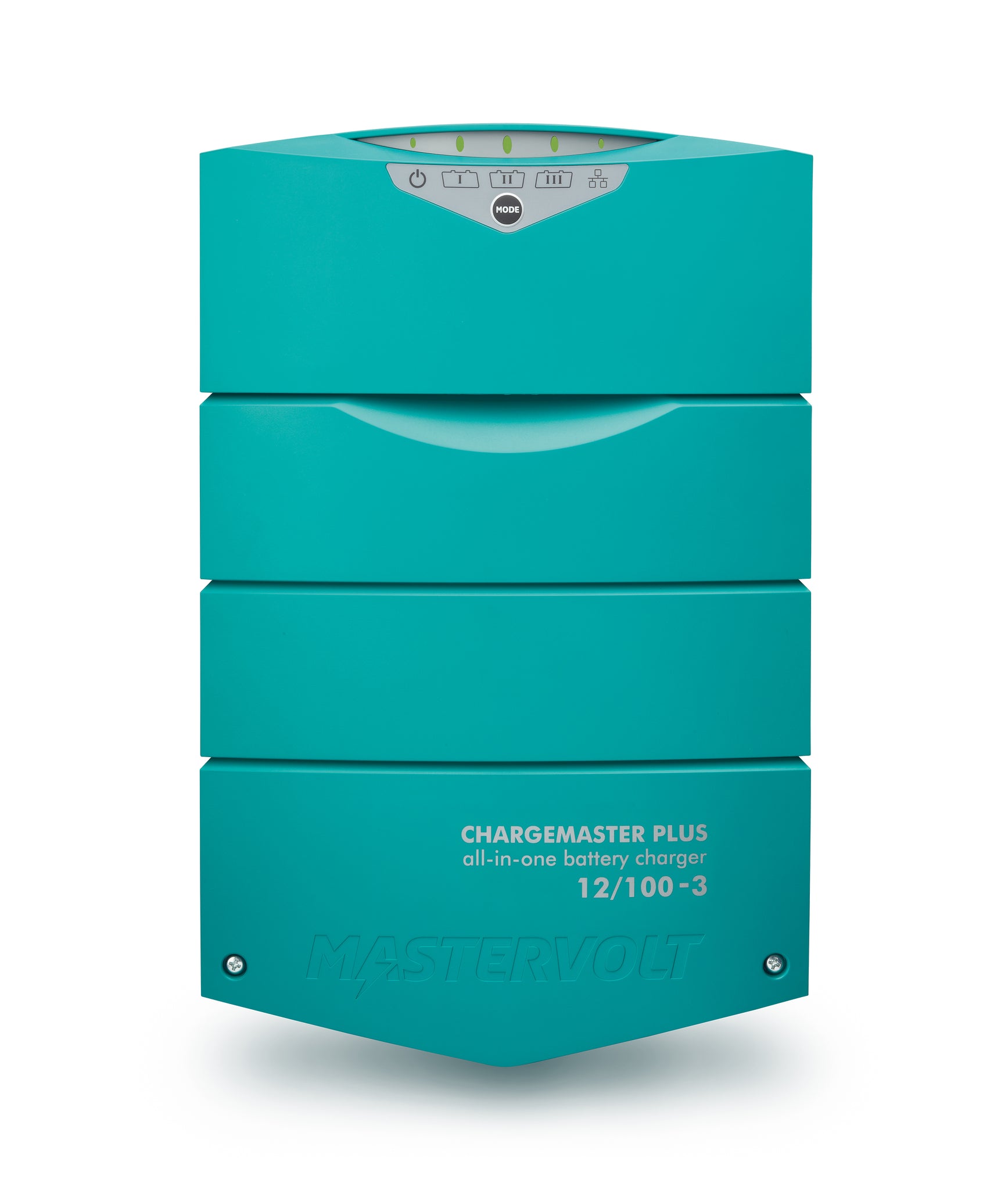

Mastervolt ChargeMaster Plus Battery Charger (12V / 100A) M44311005 44311005

Mastervolt

Recommended Retail Price
£1,439.06 Inc. VAT

Online Price (inc. VAT)
£1,225.35

Part Number: AQ M44311005

  • COVID 19 Disruption
  • Description
  • Questions
  • Reviews
  • Delivery
  • Returns
  • Age Verification

[COVID19 DISRUPTION NOTICE]

Due to the ongoing and evolving "LOCKDOWN" situation in place since early 2020, we are anticipating a small delay in processing of orders and subsequent shipping due to a reduced workforce, in both our warehouses, and those of our suppliers.

Whilst we are trying our best to continue in a business as usual, we must again close our retail showroom doors temporarily to support the Governments COVID19 Strategy. Throughout this temporary closure we will still be shipping items from our warehouses and those of our suppliers, but it may at times be subject to a small delay.

The quickest way to get an answer to any questions you may have is to email us on customerservices@chasnewensmarine.co.uk Alternatively should you wish to actually speak to a member of our team, please call us on 02087884587 and Choose Option 1.





WE OFFER FREE SHIPPING ON THIS ITEM WITHIN THE UK

Description

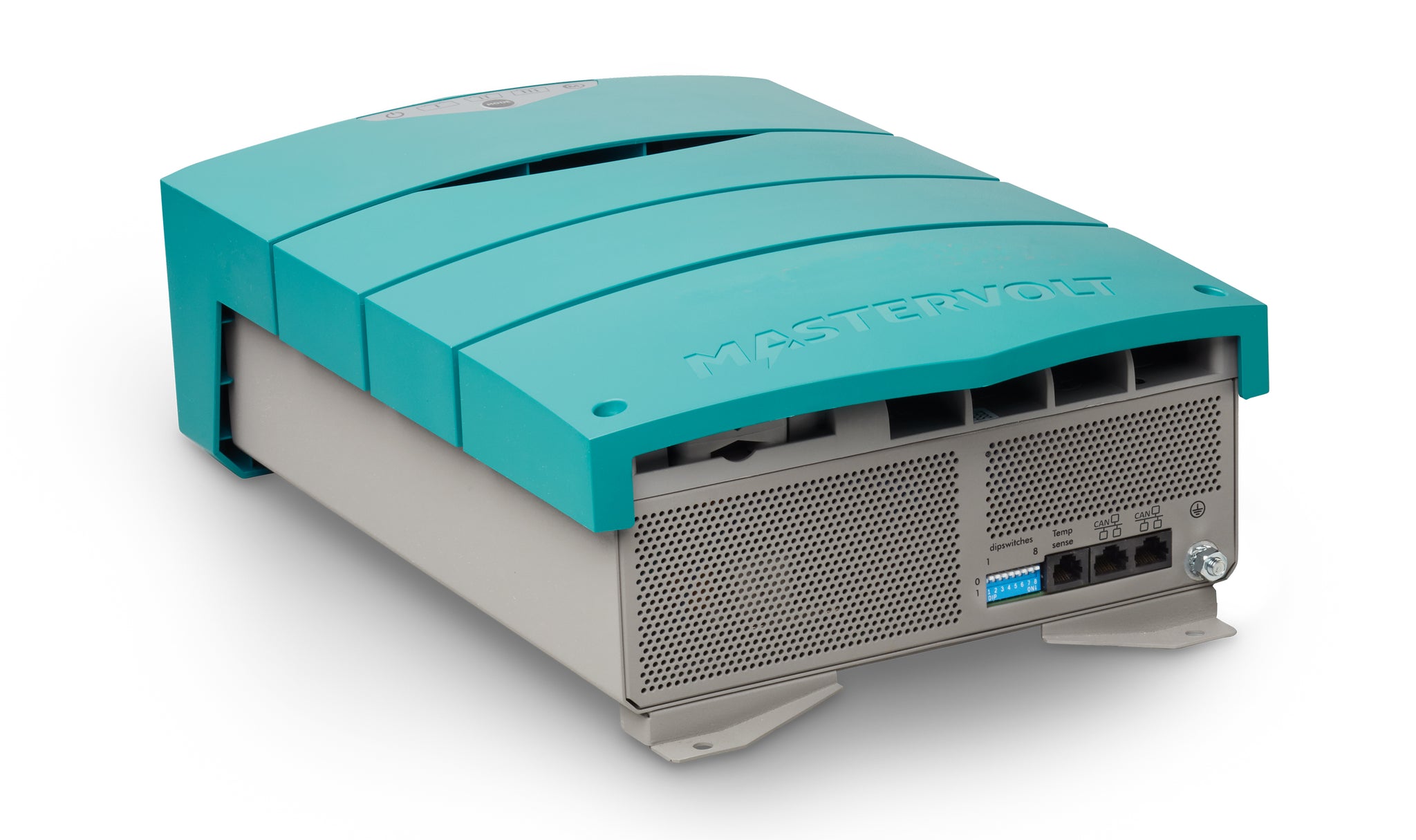

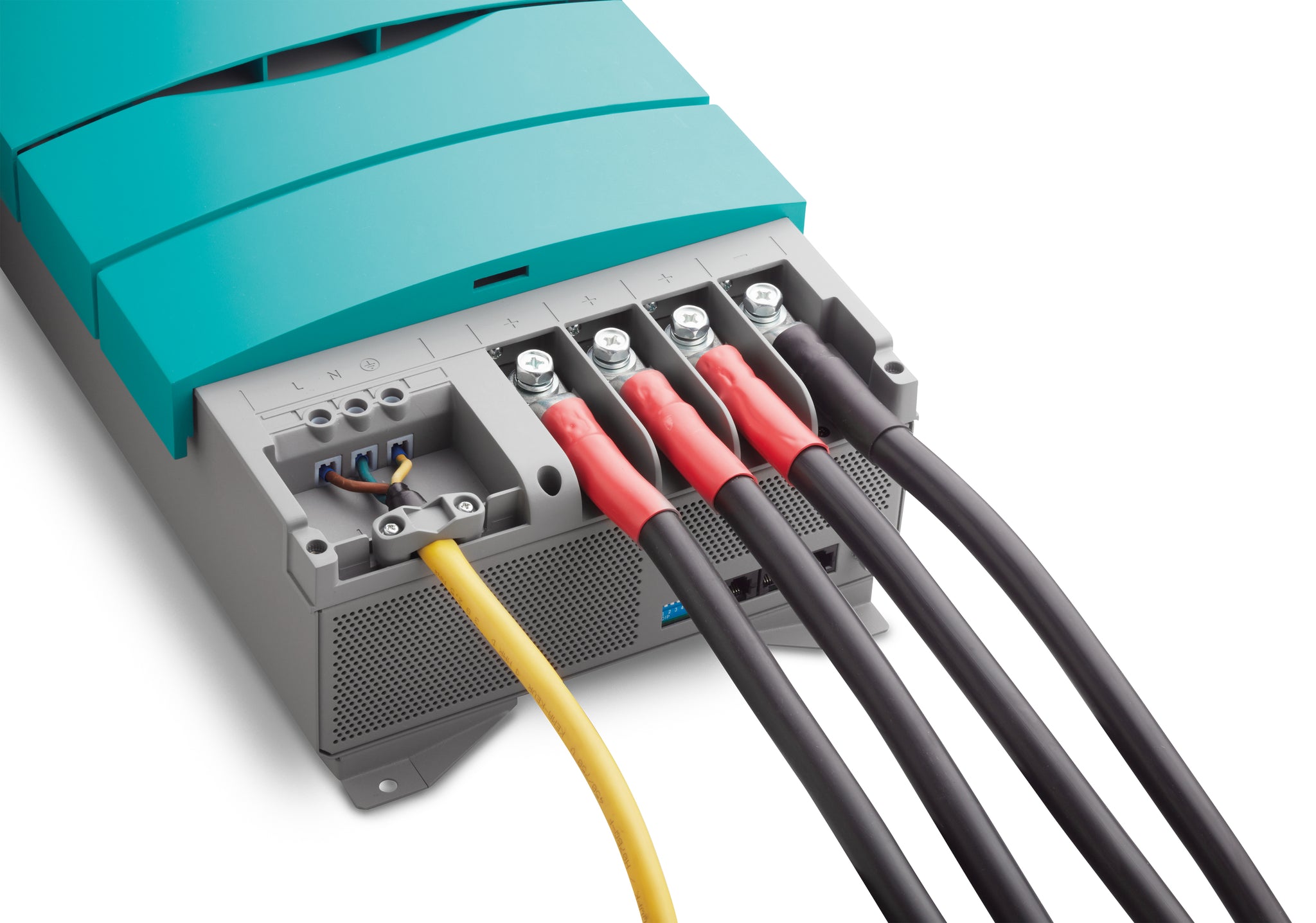

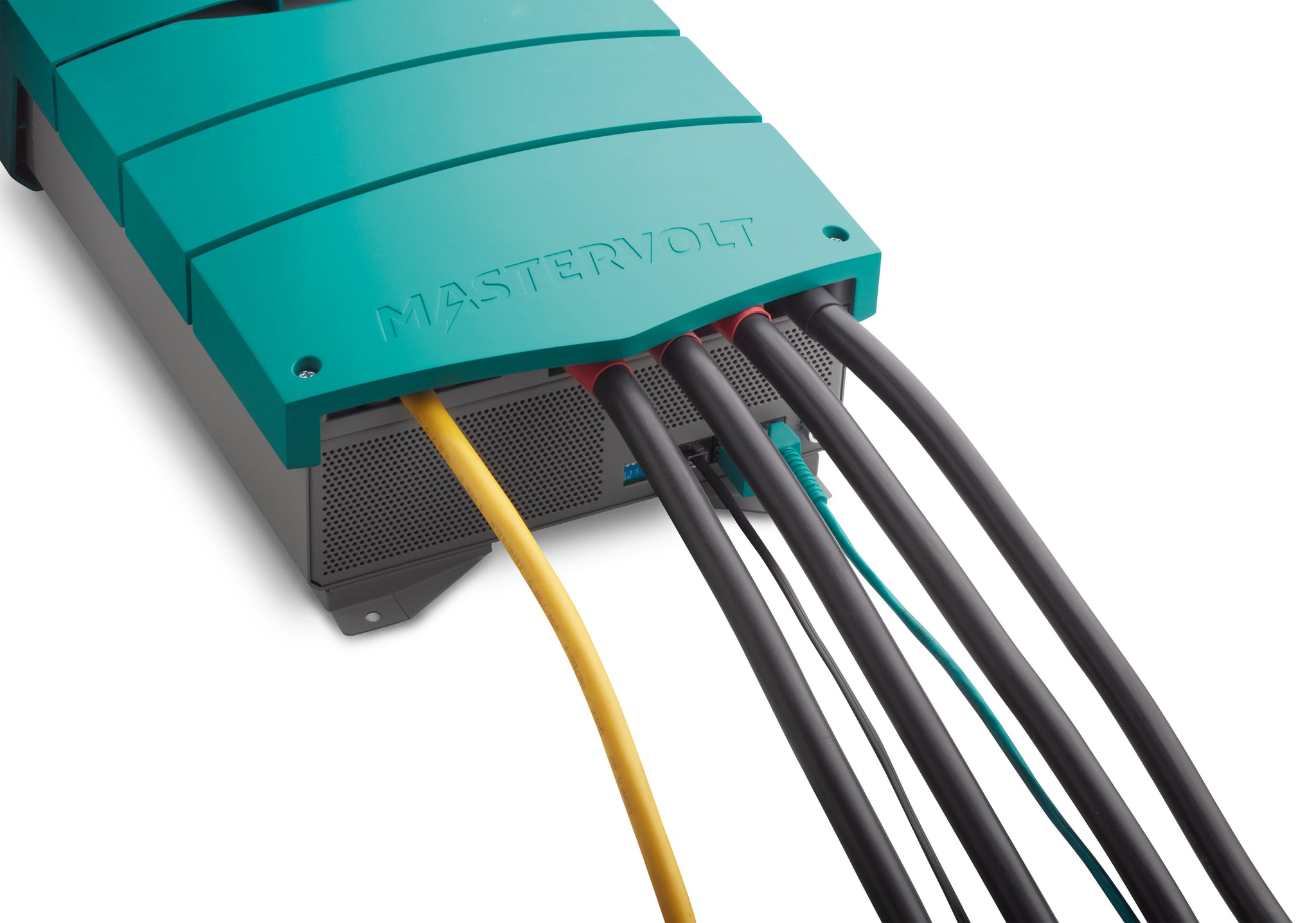

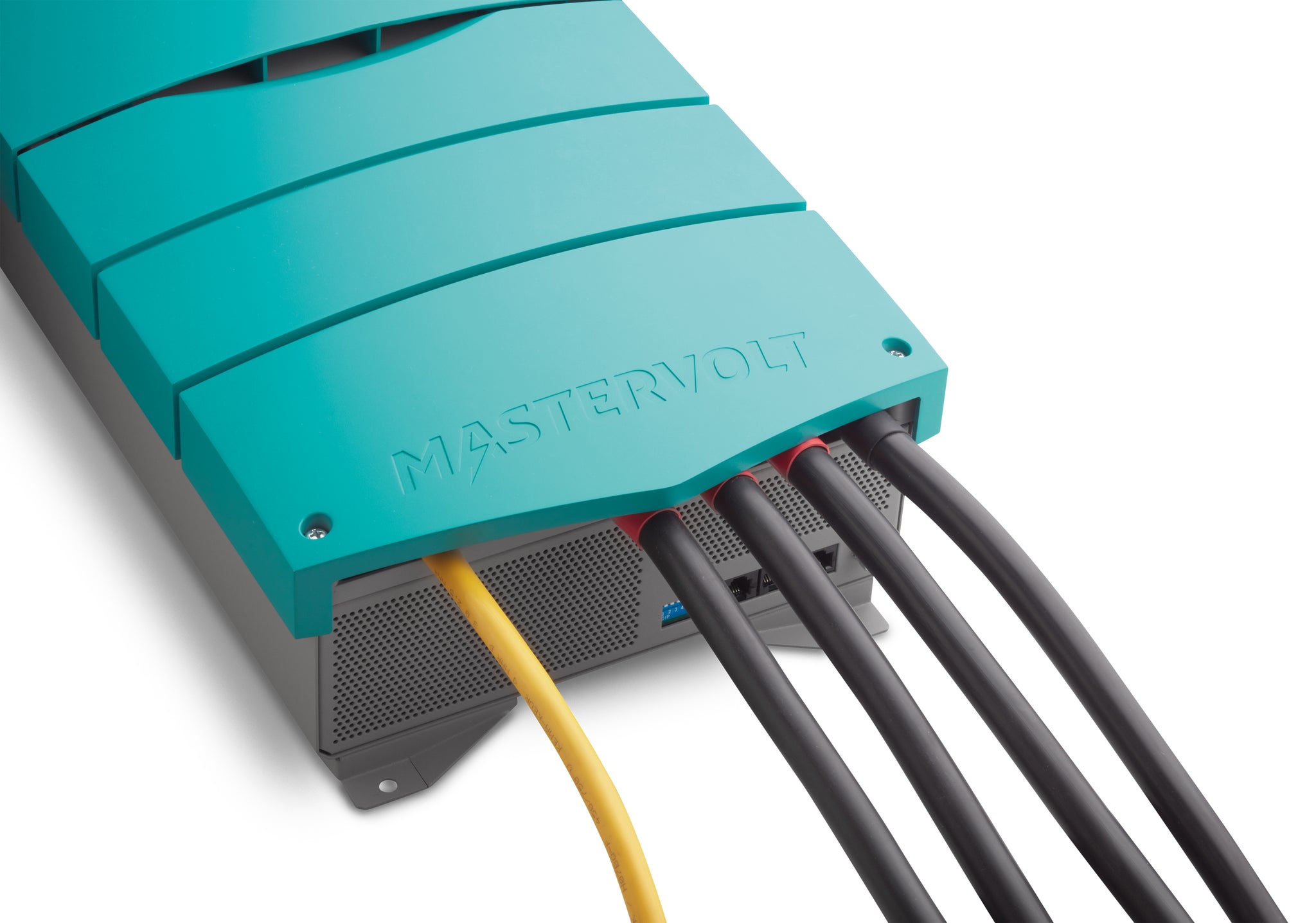

The Mastervolt ChargeMaster Plus battery charger is designed to help batteries perform better and last longer, providing fast and complete charging wherever you are. It also performs the job of a battery isolator, prioritising charge to the battery that needs it most. The energy from the alternator is fed through to the batteries with the integrated VSR, meaning all your charging needs are provided by the ChargeMaster Plus. The charger is compact and the robust connections are ergonomic, making the unit very quick and easy to install.

The 3-STEP+ charging memory ensures more power and a longer life for your batteries, and will even charge depleted batteries. The ChargeMaster is suitable for all types of battery, and also has a wide input voltage range, which ensures perfect automatic operation anywhere in the world.

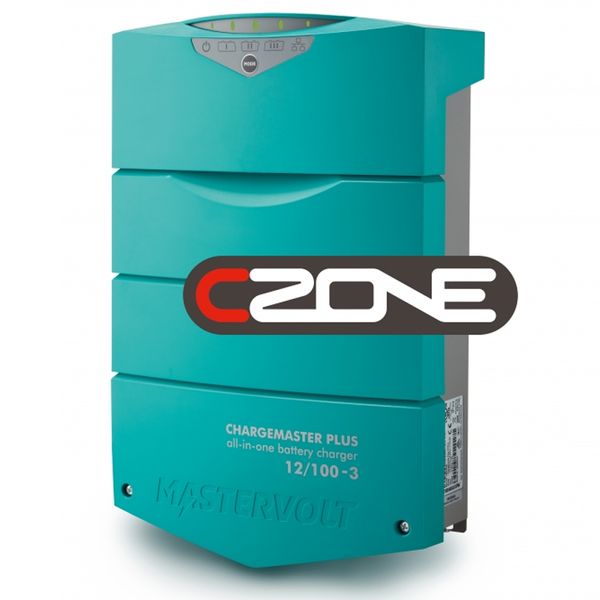

ChargeMaster Plus is MasterBus compatible, meaning they can be connected easily to a MasterBus system where you can operate and monitor all Mastervolt devices in one panel. In addition, they can also be linked via CZone and NMEA 2000 integrations without additional equipment, meaning it can link up with displays, shunts and power systems. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.

Communication & monitoring

Communication interfaces: MasterBus, CZone, NMEA

General specifications

Nominal output voltage : 12 V

Max. output current primary output: 100 A

Smart In-/Output voltage: 12 V

Smart In-/Output current: 5-40 A (adjustable)

Smart In-/Output input current: max. 40 A

Total charge current: 100 A at 14.4 V

Max. AC current (230 V / 120 V): 8.5 A / 17 A

Number of battery outlets: 3 (max.)

Battery bank size: 400-1000 Ah

Nominal input voltage: 120/230 V (80-275 V) 50/60 Hz

AC connection: screw terminals, suitable up to up to 6mm²

Power supply mode: yes

Galvanisedanic isolation: yes

Display/read-out: LED display

Dimensions, hxwxd: 384 x 250 x 127mm (15.1 x 9.8 x 5.0 inch)

Weight: 5.9 kg (13.0 lb)

Compliance: CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RMRS, RRR

Technical specifications

Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option

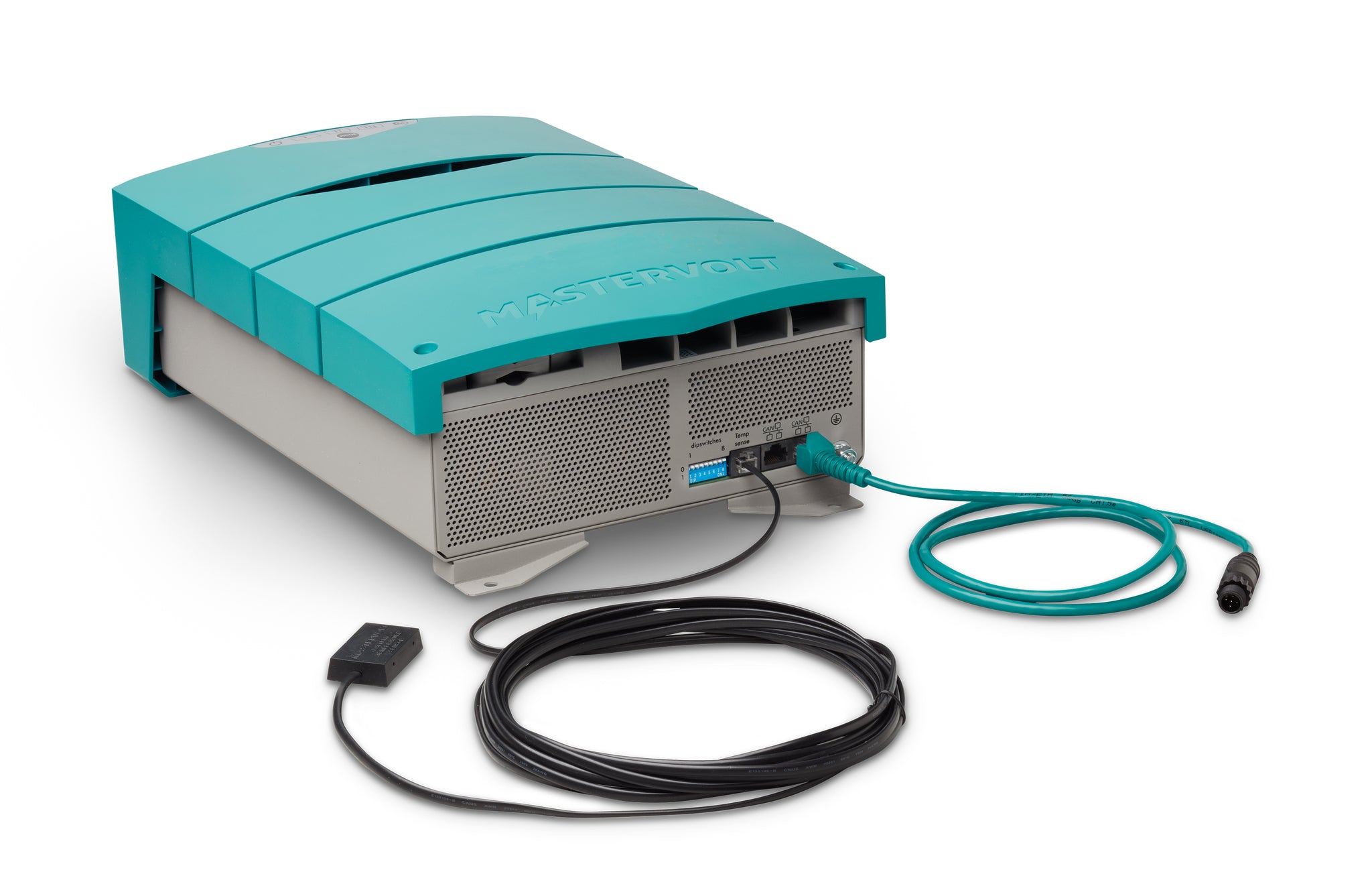

Temperature compensation: -30 mV/°C / -17 mV/°F; temperature sensor included

DC voltage compensation: through automatic compensation or MasterShunt

Power consumption (DC side): < 2 mA (MasterBus off)

Current Control function: yes, through MasterBus or CZone

Power factor control: > 0.98

Temperature range (ambient temp.): -25 °C to 80 °C, derating < 0 °C and > 40 °C (-13 °F to 176 °F)

Cooling: vario fan

Protection degree: IP23, vertical mounting

Protections: over-temperature, overload, short circuit, high/low battery voltage, ignition protection

Charger Status Interface (alarm contact): yes, using a Multipurpose Contact Output (code M77030500)


Specifications


Brand Mastervolt
Height 384mm (15.1")
Width 250mm (9.8")
Depth 127mm (5.0")
Weight 5.9 kg (13.0 lb)
Temperature Range Ambient Temperature: -25 °C to 80 °C, derating < 0 °C and > 40 °C (-13 °F to 176 °F)
Protection Rating IP23

Key Features

Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.

Combine Lithium Ion, Gel or AGM.

Charges multiple batteries while being underway.

Handles worldwide AC voltages and frequencies.

Offers 20 % more output at 14.4 V and 80 % charging power at 60 °C.

Safe Charge: quickly recognize the State of Charge for extended battery life.

Wide operating range of 80-275 V AC, 35-70 Hz.

Revival mode: automatically revives even fully depleted batteries.

Priority Charge: redirect available power to the lowest battery, for faster charging.

Smart Input: charge all three batteries from one single alternator for continuous charging on the go.
