High Load & Foot Blocks - by Barton

Barton

Recommended Retail Price
£115.45 Inc. VAT

Online Price (inc. VAT)
£101.03

Part Number: BA82998

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns
<

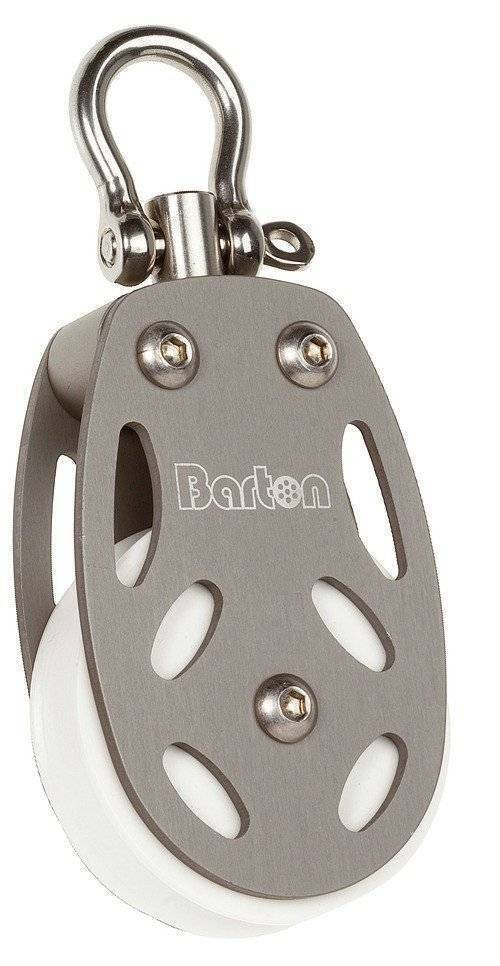

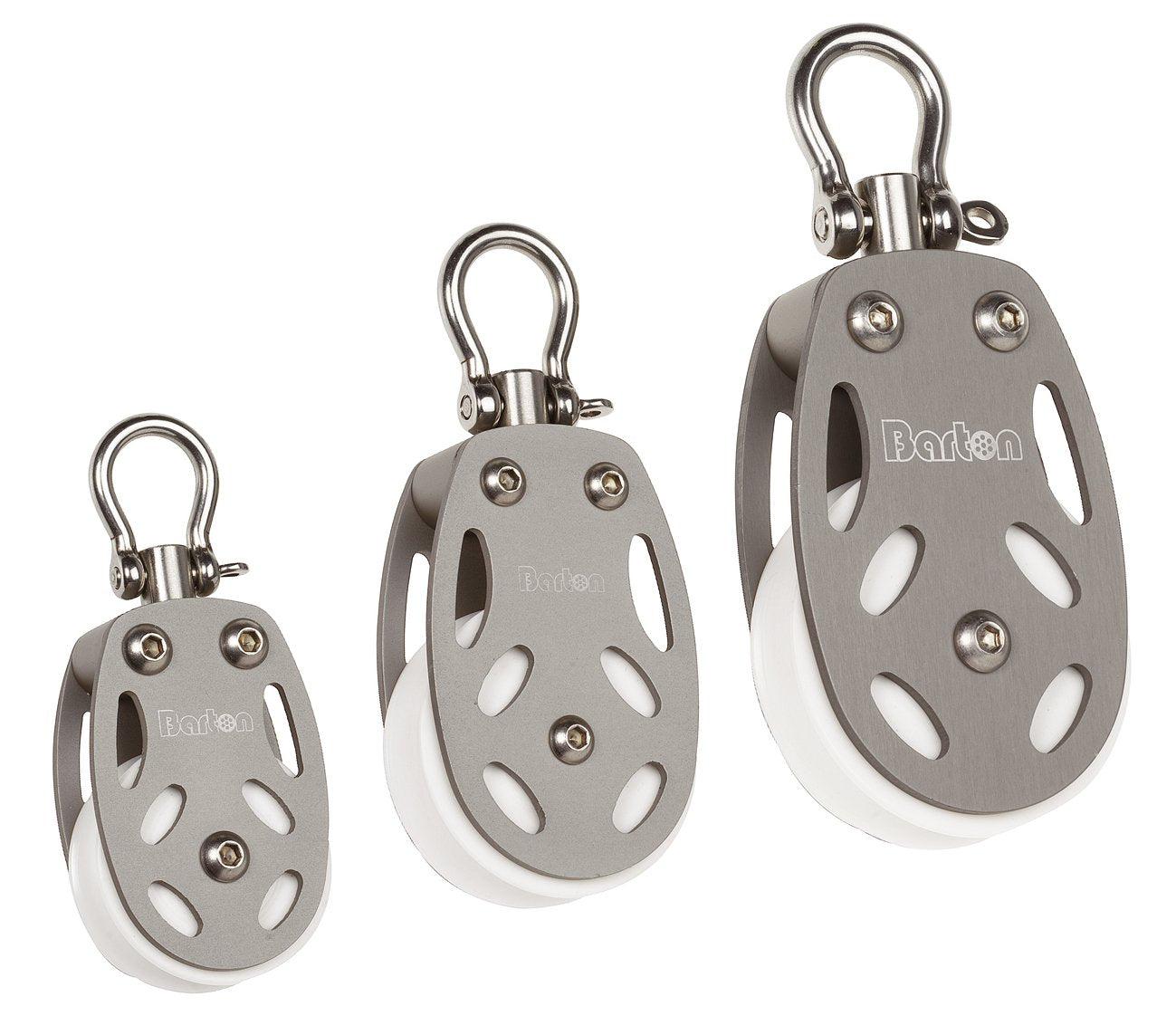

High Load Blocks

Manufactured from marine grade aluminium and grey anodised for high UV stability and durability.

Sheaves are precision turned from solid ‘Ertalyte’ bar with a profile that is kind to modern ropes.

Running on a large diameter centre bearing for easy running under high loads.

Fitted with a stainless steel bow shackle to allow for snag-free operation.

Available in three sizes, these blocks are compatible with the toggle connections on our ball bearing mainsheet travellers.

Bolt-together construction not only adds to good looks, but allows for easy dismantling should servicing become necessary.

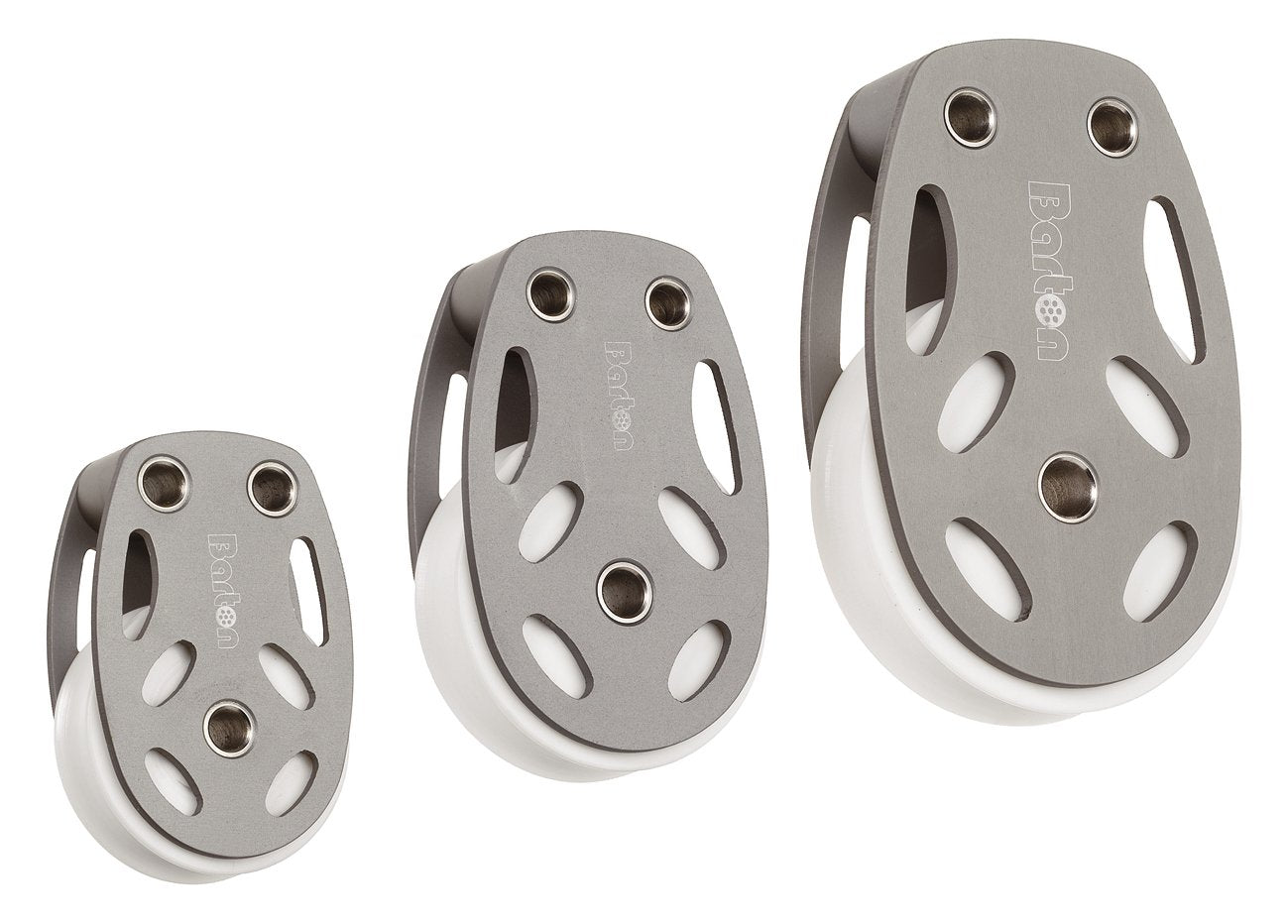

Foot Blocks

Featuring the same side plate and sheave construction as the high load blocks detailed above

Hollow stainless steel rivets allow for through-bolt fastening, giving added strength.

Through-bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note: stacking blocks will reduce working loads.

Fastenings of the minimum diameter suggested should be used to gain full load capability .

Ensure that suitable mounting pads are used under deck.

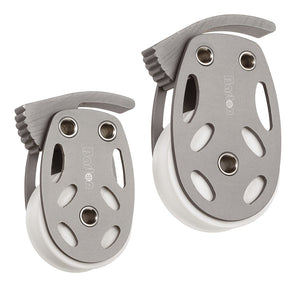

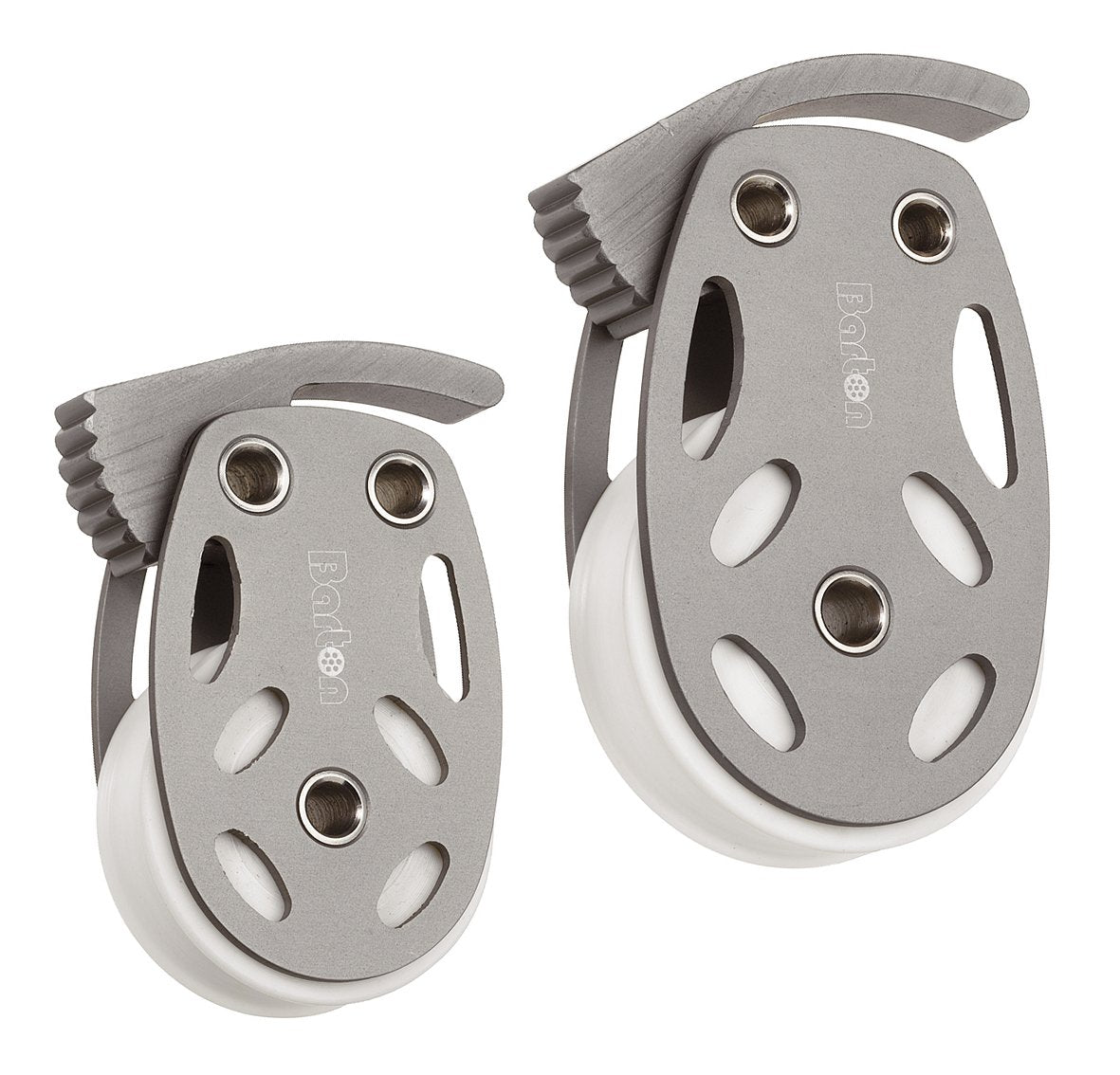

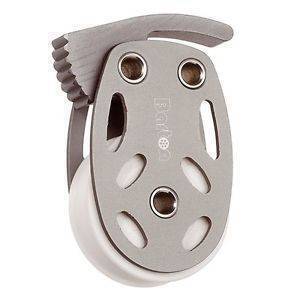

Foot Blocks With Cam

Available in two sizes; specifications as per our high load foot block range. Suitable for a multitude of uses, including locking control lines on headsail furling gear.

Foot blocks have a three bolt fixing and can be stacked to achieve doubles.

Max holding power of cams: 50mm - 250kg 65mm - 300kg.


Description Sheave ø Sheave Rope ø Break Load Length
Part No. (mm) Width (mm) (mm) (kg) SWL (kg) (mm) Weight (g)
High load blocks 50mm High load block 82100 50 15 12 1000 500 116 146
65mm High load block 82200 65 18 16 1600 800 142 267
85mm High load block 82300 85 21 18 3000 1500 185 551
Foot blocks Foot block - 50mm 82995 50 15 12 1000 500 79 114
Foot block - 65mm 82996 65 18 16 1600 800 100 211
Foot block - 85mm 82997 85 21 18 3000 1500 132 427
Foot blocks with cams Foot block - 50mm 82998 50 15 12 1000 500 84 130
Foot block - 65mm 82999 65 18 16 1600 800 105 230

Important note:

Suggested boat sizes are given as a guidance only and assume a monohull with boom end sheeting, loaded vertically to the traveller.

Mid-boom sheeting, severely angled take offs and curved tracks can impose greater loads and suitable allowances should be made for this. If at all unsure of your choice it is important to seek further advice. If you are close to the maximum boat size suggested, we would advise upgrading to a Torlon package, long car or the next size up.

Blocks

Mainsheet blocks end boom sheeting

Mainsheet blocks end boom sheeting

Spinnaker sheet / guy blocks

Spinnaker sheet / guy blocks

Mast base / halyard blocks

Mast base / halyard blocks

Kicker blocks

Kicker blocks
