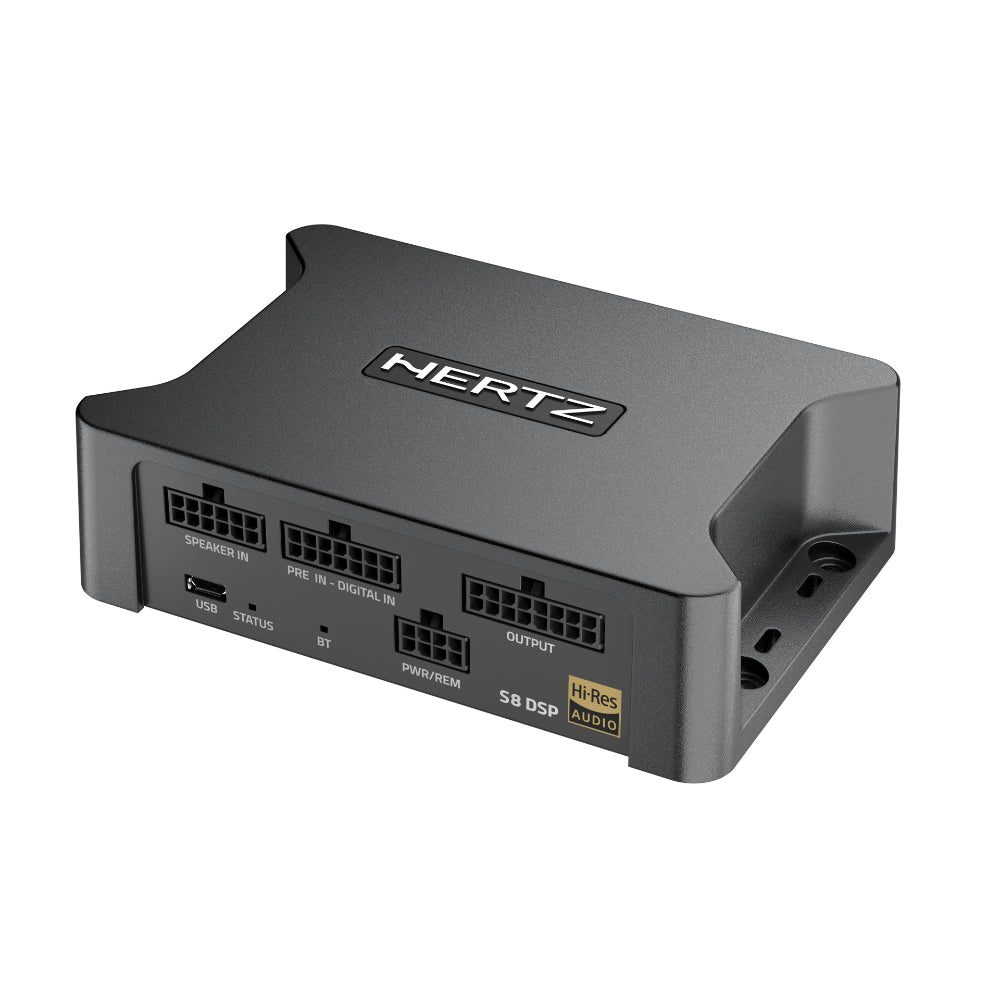

Hertz S8 DSP Hi-Res Digital Signal Processor
Hertz
Recommended Retail Price
£539.99 Inc. VAT
Online Price (inc. VAT)
£484.49
Sorry, this item is out of stock - Please contact us if you would like to order this on back order as our inventory is changing all the time and we might be able to get this in for you at short notice
- Description
- Ask a Question
- Reviews
- Delivery
- Returns
The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into any audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.
- Hi-Res audio (96 kHz/24-bit native resolution) for unparalled audio quality
- Built-in USS technology (Universal Speakers Simulator), S8 DSP can also be correctly connected to head units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs
- Upload a setup file via BT through the Bluetooth 5.0* APP when in “Configurator” or “DRC” mode
- Configurable via PC, Mac, Android, or iOS devices
- Compact size featuring all connections on one side
- S8 DSP features a sturdy enclosure with an anti-corrosion-treated PCB
Technical Specifications
XGeneral | |
---|---|
Nominal Power supply voltage / fuse: | 7 - 20 VDC / 1A |
Pulse operating voltage: | 5 - 24 VDC |
Idling current: | 0.34 A |
OFF current (ART= OFF): | <80 uA |
OFF current (ART= ON): | <80 uA |
Remote IN | 6 - 20 VDC (10 mA) |
Remote OUT | 4 - 20 VDC (150 mA) |
ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): | 1.5 - 7 VDC |
Max size W x H x D (mm/inch) | 130 x 33.8 x 88,3 / 5.11 x 1.44 x 3.47 |
Weight (kg/lbs) | 0.66 / 1.45 |
Input Stage | |
---|---|
Analog low level Inputs | 6 ch. (Differential input) (Molex microfit to RCAs) |
Analog high level Inputs | 6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator) |
Digital inputs | Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA) |
Input sensitivity (low level) | 0.8V – 6V RMS |
Input sensitivity (high level) | 2.5V – 21V RMS |
Analog inputs management | Audio input routing matrix type |
Analog inputs eq | 7 bands paragraphic for each input channel |
ART | Automatic Remote Turn-On/Off with Speaker-In |
Output Stage | |
---|---|
Analog outputs (rca) | 8 channels |
Max output level (rms) @ 0.05% THD | 4V |
95dBA Analog outputs management | The DSP controls each output channel: gain, crossover, EQ, delay, polarity |
Bandwidth | 10Hz – 40KHz (+/-3db) |
Signal to noise ratio (A weighted) | 105dBA (Analog Input) 112dBA (Digital Input) |
THD+N (@ 1Vrms out, @ 1Khz) | <0.005% |
Crosstalk (channel separation) @ 1KHz | >95dBA |
Digital Signal Processor | |
---|---|
Sample rate | 96KHz |
Bit depth | 24 |
Output equalizer | 15 bands per channel w/ adjustable Q and Frequency |
Equalizer resolution | 1/10th dB per step +12dB / -12dB |
Time alignment (distance) | 0 - 468.4 cm / 0 - 184.4 inches |
Time alignment (time) | 0 - 13.5ms |
Time alignment (step) | 0.08 ms; 2.8 cm / 1.1 inch |
Time alignment (fine set) | 0.02 ms; 0.7 cm / 0.27 inch |
Crossovers | AP/HP/LP/BP all channels |
Crossover type | Butterworth, Linkwitz-Riley, Bessel (All Channels) |
Crossover slope | From 6dB/oct. until 30dB/oct. (6dB step) |
Crossover steps | 120 steps 20Hz-20KHz |
Mute function | I can mute every channel separately or all together. |
Presets | 4 presets |
Presets selection | 2 specific wires to control the 4 presets selection by extarnal switches. |
Input selection by wire | One specific wire to select the desired input between Analog or Digital. |
Audio signal compressor on output stage | Yes (enable/disable) |
DSP chipset | Analog Device: ADAU1451 |
DSP management by bt app (iOS/ Android) |
|
Setup file sharing via BT | Upload a setup file via BT through the BT APP when in “Configurator” or “DRC” mode. |
DSP management by pc / mac / ios / android | Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE) |
The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into any audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.
S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.
The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency.
Technologies
Hi-Res Audio - Hi-Res audio (96 kHz/24-bit native resolution) for unparalled audio quality.
USS (Universal Speakers Simulator) - Thanks to the built-in USS technology , S8 DSP can also be correctly connected to head units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.
Bluetooth 5.0 - Upload a setup file via BT through the Bluetooth 5.0* APP when in “Configurator” or “DRC” mode. *Music streaming not supported.
App Control - Configurable with a PC, a Mac, an Android device, or an iOS device. iOS/ Android control APPs (Bluetooth 5.0), DRC control over app from iOS/Android devices.
Ultra Compact - Compact size featuring all connections on one side to be installed anywhere.
Conformal Coating PCB - S8 DSP features a sturdy enclosure with an anti-corrosion-treated PCB to ensure years of listening pleasure in open nature.
