HELIX 12 CHIRP MSI+ GPS G3N

Humminbird

Recommended Retail Price
£2,530.00 Inc. VAT

Online Price (inc. VAT)
£2,529.99

Part Number: MA 410920-1M
Out Of Stock - Available to Pre Order ONLY - Lead Times May Vary.

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns
  • Age Verification

Humminbird

OVERVIEW

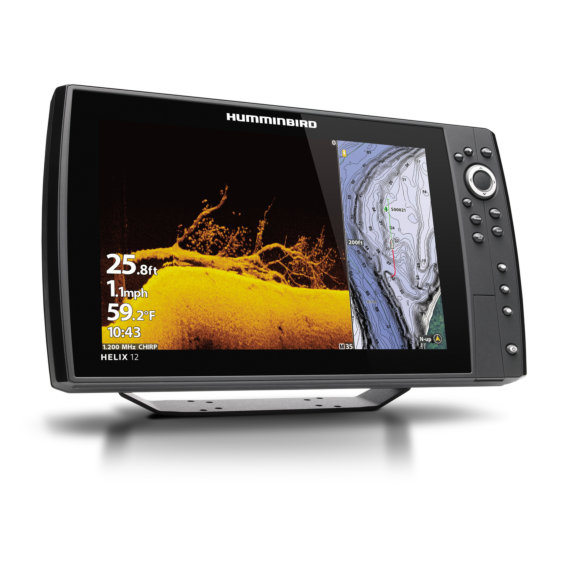

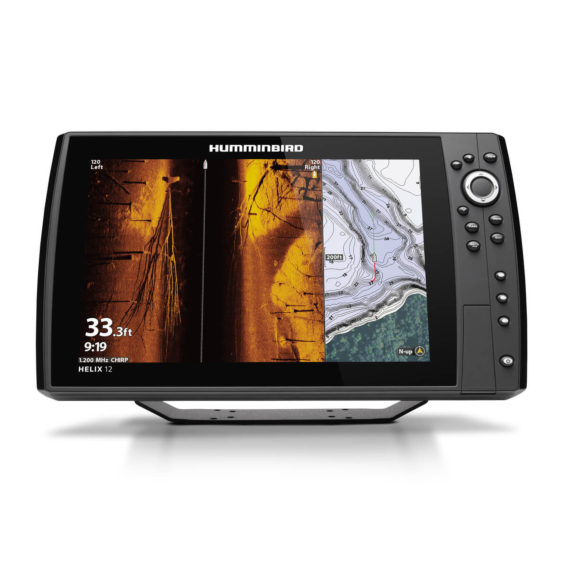

The HELIX 12 CHIRP MEGA SI+ GPS G3N features a commanding 12.1" display, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar. Includes GPS mapping, built-in Bluetooth, Ethernet networking capabilities and ability to create your own maps in real-time with AutoChart Live's depth, vegetation and bottom hardness mapping. Humminbird Basemap cartography is built-in, with the option to expand your mapping capabilities with available LakeMaster charts.

FEATURES

  • NEW MEGA Side Imaging+: See the world below like never before with crystal-clear viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail than MEGA Side Imaging Sonar.
  • NEW MEGA Down Imaging+: Get unprecedented underwater clarity with coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail than MEGA Down Imaging Sonar.
  • Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
  • SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
  • Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
  • Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.
  • Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).
  • LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges and adjustable water levels, you'll have all the tools you need to make every moment count.
  • Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
  • Includes transducer and mounting hardware, power cable, gimbal mounting bracket and unit cover.
SPECS
Series
HELIX
Display Size - Diagonal
12.1"
Display Pixel Matrix
1280H x 800V ft
Sonar-Standard
Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
Sonar-Optional
50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported
Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported
50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar
1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
CHIRP - Imaging-Frequencies Supported
455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
Depth-Down Imaging
125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side)
800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)
Interface
Keypad Control
Memory Card Slot
Dual SD
Power Draw
1.75 Amps
Power Input
10.8-20 VDC
Power Output Peak-to-Peak
8000 Watts
Power Output RMS
1000 Watts
Screen Snap Shot
Included
Sonar Recording
Included
Mount-Standard
Gimbal

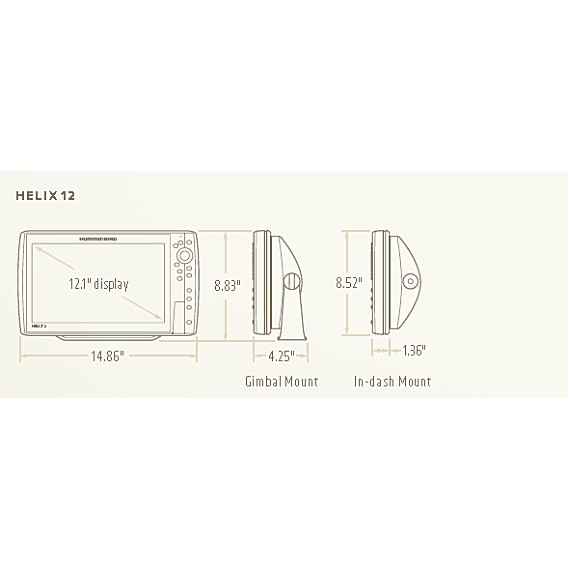

Mount-Standard Size
14.86" W x 8.83" H x 4.25" D
Mount-Optional
In-Dash Mounting Kit
Mount-Optional Size
14.86" W x 8.52" H x 1.36" D
Transducer Included
XM 9 HW MSI T
Transducer Mount Location
Transom
GPS Chartplotting
Included
GPS Receiver
Internal
GPS Trackplotting
Included
Waypoints, Routes, Tracks/Points
2,500, 47, 50/20,000
360 Imaging Compatibility
Yes
Humminbird Basemap
Included
LakeMaster Compatibility
Yes
Minn Kota i-Pilot Link Compatibility
Yes
Minn Kota Talon Shallow Water Anchor Compatibility
Yes
Navionics Gold/HotMaps Compatibility
Yes
Navionics Platinum + Compatibility
Yes
Platinum Compatibility
Yes
Radar Compatibility
Yes
5-Port Ethernet Switch Compatibility
Yes
AIS Compatibility
Optional
Heading Sensor GPS Compatibility
Yes
NMEA2000
Optional
Target Separation
2.5"
Upgradable Software
Yes
View Preset Keys
Yes
X-Press Menu System
Yes
Custom Digital Readout
Yes
Custom View Selections
Yes
Display Colors Grayscale
16-Bit
Display Type
Color TFT
Temperature
Built In
Temperature Alarm
Yes
Temperature Graph
Yes
UPC
0082324052996
