Garmin Reactor 40 Kicker Autopilot & GHC 50

Garmin

Recommended Retail Price
£2,789.99 Inc. VAT

Online Price (inc. VAT)
£2,557.86

Part Number: SMG 230-0100279409

Sorry, this item is out of stock - Please contact us if you would like to order this on back order as our inventory is changing all the time and we might be able to get this in for you at short notice

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

ECU 14

  • Dimensions: 17.5 x 14.2 x 6.5 cm
  • Supply voltage range: 10 to 32 volts
  • Operating temperature range: -20° to 70° C
  • Typical power consumption: 1 to 2 amps average depending on weather conditions
  • Water rating: IPX7

Steering Actuator

  • Motor side: Extends 10.3 cm (4\") from end of tilt tube
  • Motor: 6.2 cm ( 2.5”) diameter
  • Overall length: Closed 44.5 cm (17.5”); Extended 64.4 cm (25.3”)
  • Operating temperature range: -20° to 70° C
  • Water rating: IPX7

Reactor Autopilot Remote Control

  • Physical dimensions: 15.2 x 5.2 x 3.2 cm
  • Weight: 109 g without batteries
  • Display type: Sunlight-visible transflective memory-in-pixel (MIP)
  • Display size: 3.0 cm diameter
  • Display resolution: 240 x 240 pixels
  • Power: 2 x AA batteries (sold separately)

Throttle Actuator

  • Dimensions: 15.1 x 5.9 x 2.8 cm
  • Operating temperature range: -20° to 70° C
  • Water rating: IPX7

GHC 50 Marine Autopilot Instrument

  • Dimensions: 4.13” x 4.51” x 2.01” (105 x 140 x 51 mm)
  • Touchscreen: Yes
  • Display resolution: 800 x 480
  • Display type: WVGA
  • Weight: 11.57 oz (328 g)
  • Water rating: IPX7
  • Mounting options: Flat or flush

Every Captain Needs A Co-Pilot

Designed for small gasoline boats this Reactor 40 kicker autopilot gives an extra hand fish and explore paradise worry-free.

  • This Reactor 40 kicker autopilot is the perfect companion for any small gasoline-powered boat.
  • Sit back and relax. With this autopilot maintain heading hold and stay on course.
  • Not just getting an autopilot; a convenient floating handheld remote too.
  • Easily fine-tune autopilot throttle settings with the touch of a button.
  • Combine with a compatible Garmin chartplotter and control the autopilot from anywhere on the boat.
  • The GHC 50 autopilot instrument enhances the autopilot experience.
×
1 / 5
2 / 5
3 / 5
4 / 5
5 / 5

Every Captain Needs A Co-Pilot

Designed for small gasoline boats this Reactor 40 kicker autopilot gives an extra hand fish and explore paradise worry-free.

  • This Reactor 40 kicker autopilot is the perfect companion for any small gasoline-powered boat.
  • Sit back and relax. With this autopilot maintain heading hold and stay on course.
  • Not just getting an autopilot; a convenient floating handheld remote too.
  • Easily fine-tune autopilot throttle settings with the touch of a button.
  • Combine with a compatible Garmin chartplotter and control the autopilot from anywhere on the boat.
  • The GHC 50 autopilot instrument enhances the autopilot experience.

Plot Course to Paradise

Autopilot Compatibility: This kicker autopilot works for boats with small gasoline outboard motors up to 25 horsepower1.

Stay on Course: Whether fishing or just taking a sailboat out of the marina this autopilot helps maintain heading hold and route to keep the boat on course - even against wind waves or heavy current.

Easy-to-Use Remote Control: The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright sunlight-readable display. Quickly and easily control throttle settings as well as drop to idle speeds when netting a fish or coming up to a mooring.

Includes GHC 50: Combine the Reactor 40 autopilot with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to the helm. Plus the GHC 50 shares data and settings with Garmin MFDs and other installed Garmin devices.

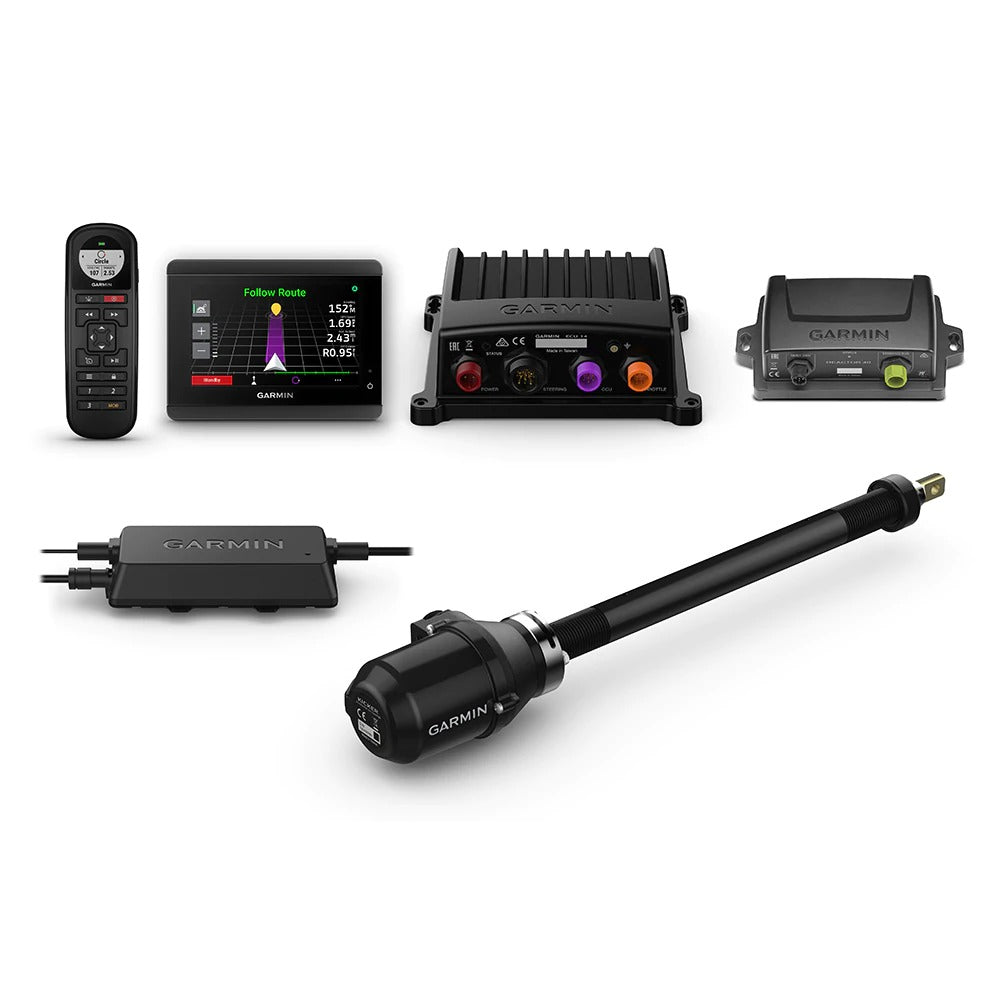

In the Box

  • GHC 50 Marine Autopilot Instrument
  • CCU (Course computer unit)
  • ECU (Electronic control unit)
  • ECU (Electronic control unit) power cable
  • ECU to CCU interconnect cable
  • Steering Actuator
  • Throttle Actuator
  • Autopilot remote
  • NMEA 2000 drop cable (2 metres)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation
