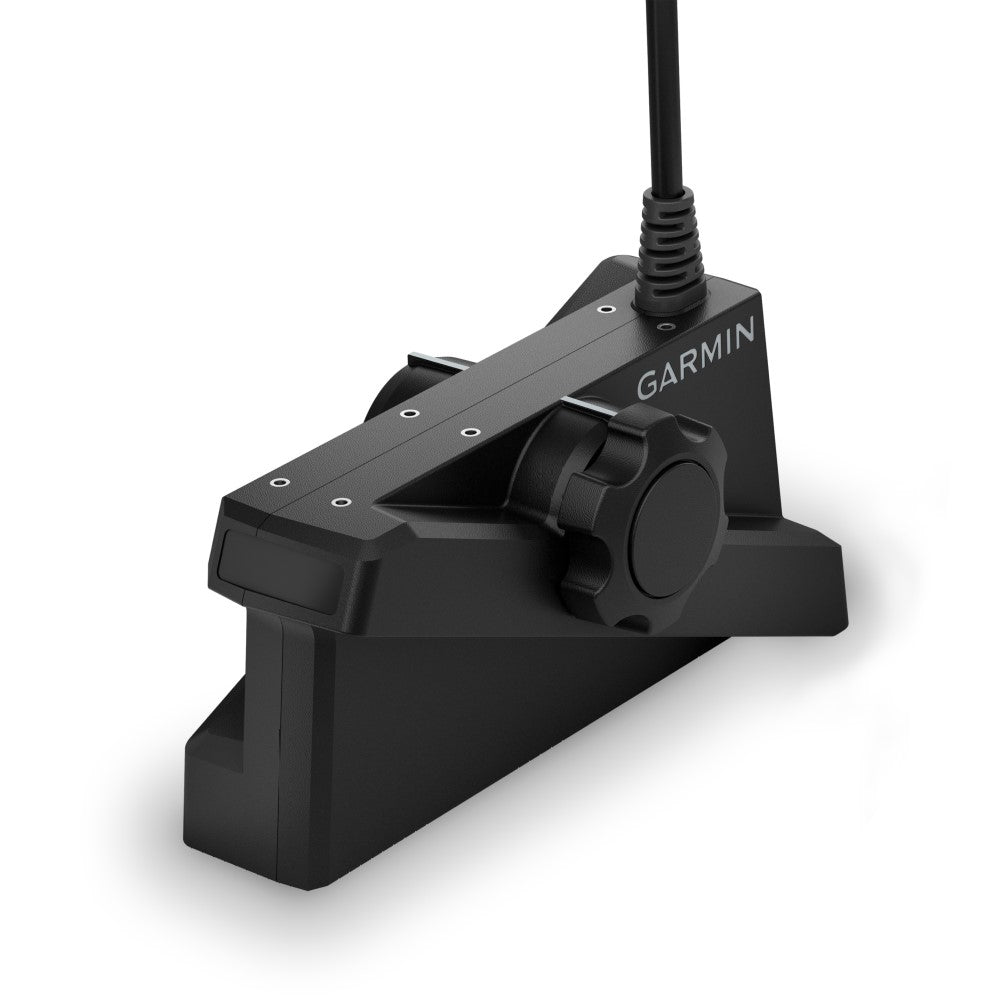

Garmin Panoptix LiveScope XR LVS62 Transducer
Garmin
Recommended Retail Price
£1,939.99 Inc. VAT
Online Price (inc. VAT)
£1,782.24
Sorry, this item is out of stock - Please contact us if you would like to order this on back order as our inventory is changing all the time and we might be able to get this in for you at short notice
- Description
- Ask a Question
- Reviews
- Delivery
- Returns
The latest in LiveScope technology, now for coastal and open-water fishing. The new XR transducer offers live scanning sonar upto 500' in freshwater and upto 350' in saltwater. Includes Perpective Mount, Trolling Motor Barrel Mount, Shaft Mount, Power Cable and all documentation.
- Power Input: 10-32 V
- Power Usage: 21 W typical, 58 W max
- Transmit Power: 500 W
- Frequency: 282 - 522 kHz
- Maximum Depth: Freshwater: Down and Forward: 500’ (152.0 m), Saltwater: Down and Forward: 350’ (106.0 m)
-
Tranducer Beamwidth: 20° x 135°
-
Transducer Cable Length: 20 ft
-
Transducer Number of Pins: 21
The Best of the Best Just Hit the Open Water
Didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.
- Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.
- Find fish circling the boat with clear views close around the hull.
- Upgrade a current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
- Get maximum contrast and clarity in the images with vivid colour palettes.
- Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount.
The Views Needed to Find Fish
The Long View: The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500’ in freshwater and 350’ in saltwater.
A Close View: The Compress Range feature gives a clear view close to the boat while keeping an eye on targets farther away.
Real-Time Images: Real-time sonar ensures that live images are as accurate as possible.
Image Definition Never Seen Before
Image Stabilisation: A built-in stabilisation system keeps the sonar image on the compatible chartplotter steady, even in rough conditions.
Vivid Colour Palettes: Choose from seven vivid colour options — including aqua, Caribbean, lava and more — to see fish and structure in maximum contrast and clarity.
Select a LiveScope Mode to Fit the Environment.


Forward Mode: Now scout even farther ahead of the boat to see what’s happening in real time.
Down Mode: Explore live views of the activity deeper beneath the boat.
Perspective Mode: See under the water with a view from the boats perspective above the water.
In The Box
- LiveScope XR LVS62 Transducer
- Perspective mount (LiveScope XR LVS62 transducer only)
- Trolling Motor Barrel Mount
- Shaft mount
- Power cable
- Documentation
