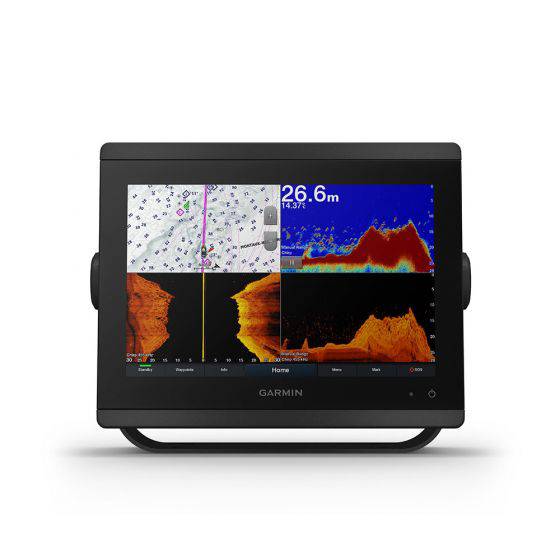

Garmin GPSMAP 8410xsv 10'' MFD Chartplotter / Sonar

Garmin

Recommended Retail Price
£2,719.99 Inc. VAT

Online Price (inc. VAT)
£2,493.99

Part Number: SMG 230-0100209102
Out Of Stock - Available to Pre Order ONLY - Lead Times May Vary.

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

Serious cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8410 chartplotter delivers MFD performance in a combo-size package. It features a 10” full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush. It also provides standard USB touch output for use as a touchscreen monitor for Windows® and Mac® operating systems.

Chartplotter with CHIRP, ClearVu & SideVu Sonar

  • Physical Dimensions: 25.9 cm x 20.5 cm x 7.5 cm
  • Display Size: 21.8 cm x 13.7 cm; 10.1" (25.7 cm) diagonal
  • Display Resolution: WUXGA; 1920 x 1200 px
  • Display Type: Touchscreen IPS display (anti-glare finish)
  • Weight: 2.4 kg
  • Water Rating: IPX7
  • Polarized Support: Yes
  • Power Consumption : 2.7 A
  • Antenna: Internal or external over NMEA 2000
  • Mounting Options: Bail, flat or flush. (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
  • Receiver: 10 Hz GPS/GLONASS/Galileo
  • Sonar: Built-in dual channel 1 kW CHIRP, ClearVü and SideVü with Ultra High-Definition option and LiveScope LVS12
  • Garmin Marine Network™ Ports: 2
  • Transmit Power: 1 kW traditional; 1 kW CHIRP
  • Accepts Data Cards: 2 SD™ cards (on back of unit)
  • Waypoints: 5,000
  • Track Log: 50,000 points; 50 saved tracks
  • Routes: 100 (250 waypoints each)

10" Chartplotter with full HD in-plane switching (IPS) touchscreen

  • Features a 10" full HD IPS touchscreen display
  • Built-in support for the full suite of Garmin sonar capabilities
  • Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network
  • Includes ANT® technology and Wi-Fi® networking
  • Garmin SailAssist™ feature provides critical sailing data and displays prerace guidance for racers
  • SmartMode™ station controls enable quick, one-touch access to the information you need

Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP® 8410xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 10" full HD in IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarised sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

Complete sonar supportThe GPSMAP® 8410xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).

Build your marine systemNMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilisation and more — conveniently to your chartplotter screen.

Full connectivityThe GPSMAP® 8410xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications (1), Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.

SmartMode station controlsNetworked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.

Special sailing featuresTo help you make informed decisions, the Garmin SailAssist feature provides critical data displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customisable fields.

The ultimate connected boating appDownload the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.

  1. When paired with a compatible smartphone
