Garmin ECHOMAP UHD 75sv

Garmin

Recommended Retail Price
£919.99 Inc. VAT

Online Price (inc. VAT)
£851.49

Part Number: SMG 230-0100234010

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

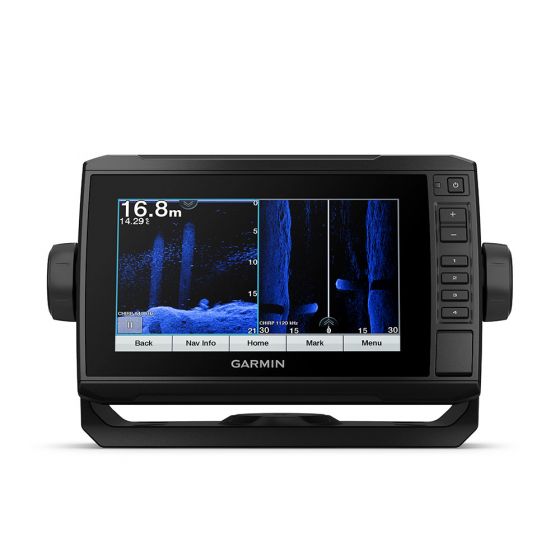

Find more fish using the ECHOMAP™ UHD 75 combo. It features a bright, sunlight-readable 7” touchscreen with keyed assist plus support for Ultra High-Definition ClearVü and SideVü scanning sonar or Garmin high wide CHIRP traditional sonar.

  • Physical Dimensions: 25 x 13.9 x 5.1 cm
  • Display Size: 15.5 x 8.6 cm; 17.8 cm (7.0") diagonal
  • Display Resolution: 400 x 800 pixels
  • Display Type: WVGA display
  • Weight: 0.77 kg
  • Water Rating: IPX7
  • Power Consumption: 15 W
  • Antenna: Internal or external over NMEA 2000
  • Mounting Options: Bail or flush
  • Receiver: 5 Hz
  • Garmin Marine Network™ Ports: None
  • Transmit Power: 500 W (RMS) / 4,000 W (peak to peak)
  • Preloaded Maps: BlueChart® g3 (coastal charts)
  • Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
  • Waypoints: 5,000
  • Track Log: 50,000 points; 50 saved tracks
  • Routes: 100

Join the club. Find more fish.

The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

  • See below and around your boat in incredible detail with included transducer
  • Preloaded BlueChart® g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast.
  • Share data with other devices on your network
  • Manage your marine experience from nearly anywhere
  • Control the most powerful trolling motor available
  • Create your own maps on the fly and tailor them to fit your needs

Take fishing to the next level.

Sonar SupportThis chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

Preloaded MappingExperience unparalleled coverage and detail with preloaded BlueChart® g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast featuring integrated Garmin and Navionics® content.

Quickdraw ContoursCreate personalised fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the QuickDraw™ Community on Garmin Connect™.

Boat Connected.

Network CapableIf you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).

NMEA 2000® and NMEA 0183 NetworksConnect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

Activecaptain® AppBuilt-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin QuickDraw Community data and more.

Force™ Trolling Motor CompatibilityTake control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.

More Information
SKU 230-0100234010
Brand Garmin
