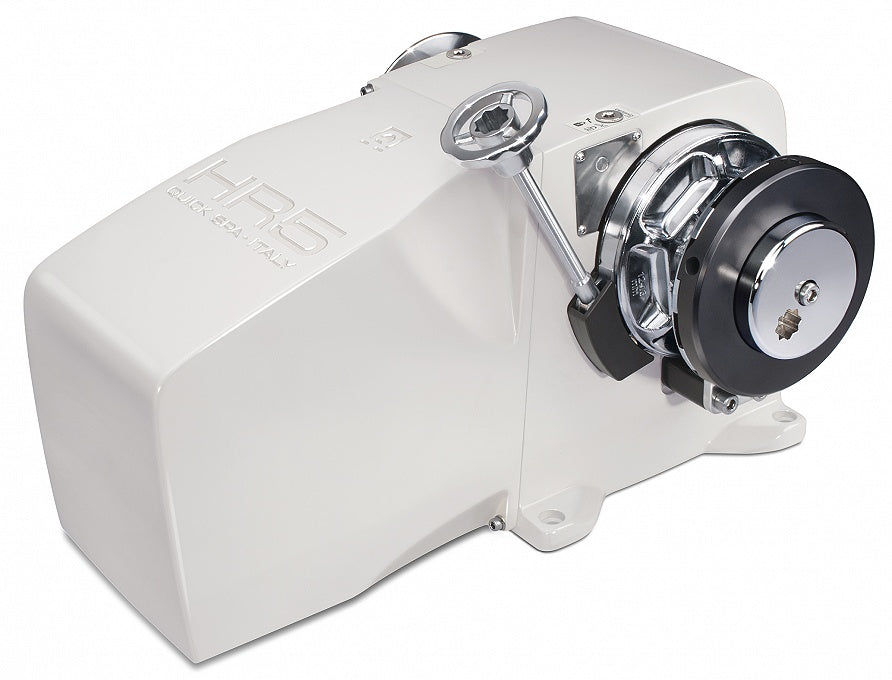

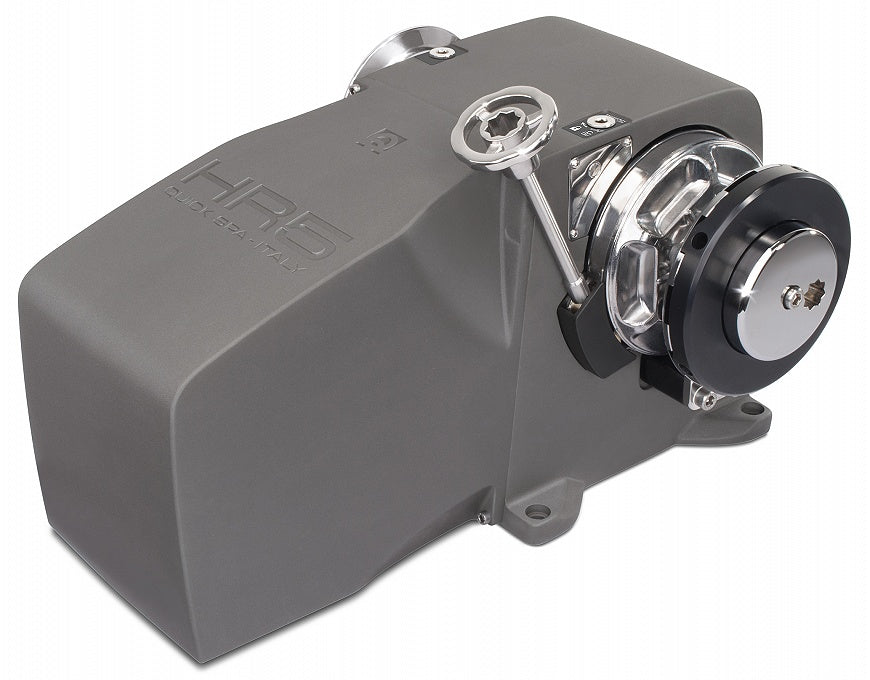

Hero HR5 2324 XX-BX - 2300W Windlass for 24V Systems - 10 mm - With right gypsy

Quick

Recommended Retail Price
£6,551.72 Inc. VAT

Online Price (inc. VAT)
£5,751.96

Part Number: FSH52324XX1XA00
Out Of Stock - Available to Back Order ONLY - Lead Times May Vary.

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

Quick

  • Horizontal on-deck windlasses
  • Painted aluminim base (RAL 9010)
  • With and without drum
  • Rope and chain on a single gypsy
  • Emergency ratchet-operated manual lift system

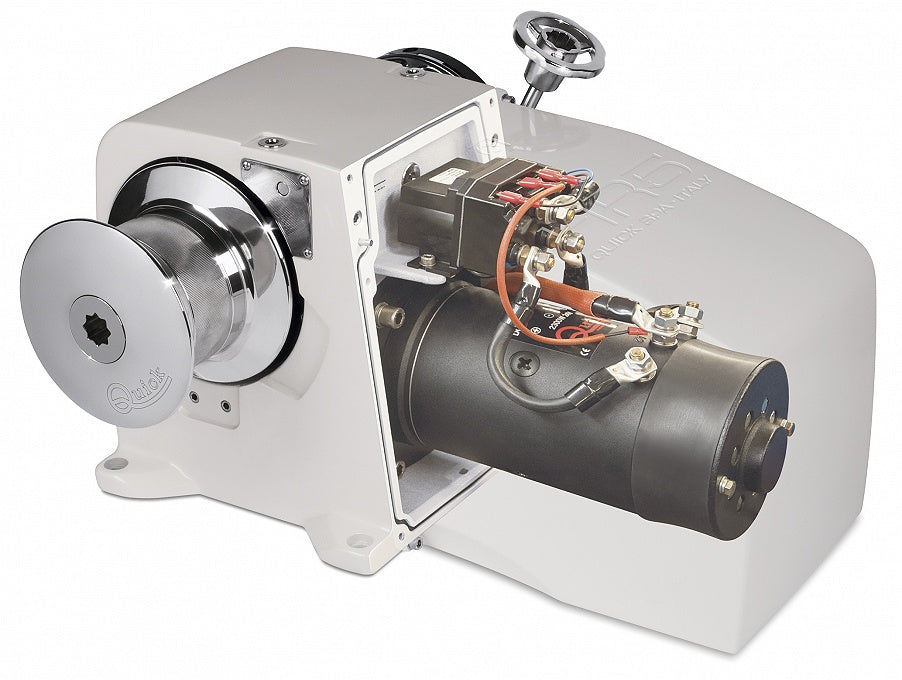

  • Integrated solenoids unit
  • Manual Free-Fall system
  • Safety mechanical band brake
  • IP66 watertight motor
For boats from 12 to 24 metres (39 - 79 ft)
Heroes 1700 W 12 - 16 m 39 - 52 ft
Heroes 2300 W 15 - 20 m 49 - 66 ft
Heroes 3000 W 20 - 24 m 66 - 79 ft
Heroes AC 3000 W 15 - 20 m 49 - 66 ft

Available on request with hydraulic motor (HR5 Hydro)

Gypsy and Drum Ø 150 mm / 6"21/64
GYPSY 10 mm - 3/8" 12/13 mm 14 mm
CHAIN 10 mm 12 mm 13 mm 14 mm
ISO (P.30) ISO DIN 766 DIN 766
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Quick®" system.
Standard version HR5 2300 / D
Motor power 2300 W
Motor supply voltage 24 V
Maximum pull 2400 Kg
  5291 lb
Maximum working load 850 Kg
1874 lb
Working load 285 Kg
  628 lb
Current absorbtion @ working load (1) 120 A
Maximum chain speed (2) 29,9 m/min
  98.1 ft/min
Maximum chain speed @ working load (2) 23,3 m/min
  76.4 ft/min
Weight - HR5 XD-BX / XB-DX 64 Kg
141 lb
Weight - HR5 DB-DX / XD-BD 69 Kg
152  lb
Weight - HR5 XB-BX 71 Kg
156 lb
1) After an initial period of use
2) Measurements taken with a gypsy for a 8 mm chain

Dimensions

Heroes - HR5 - 2300/D/DBHR5 170-2300-3000

Deck thickness:
30÷70 mm (1" 3/16 ÷ 2" 3/4)
On request, studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch)
Heroes - HR5 - 2300/D/DBHR5 170-2300-3000

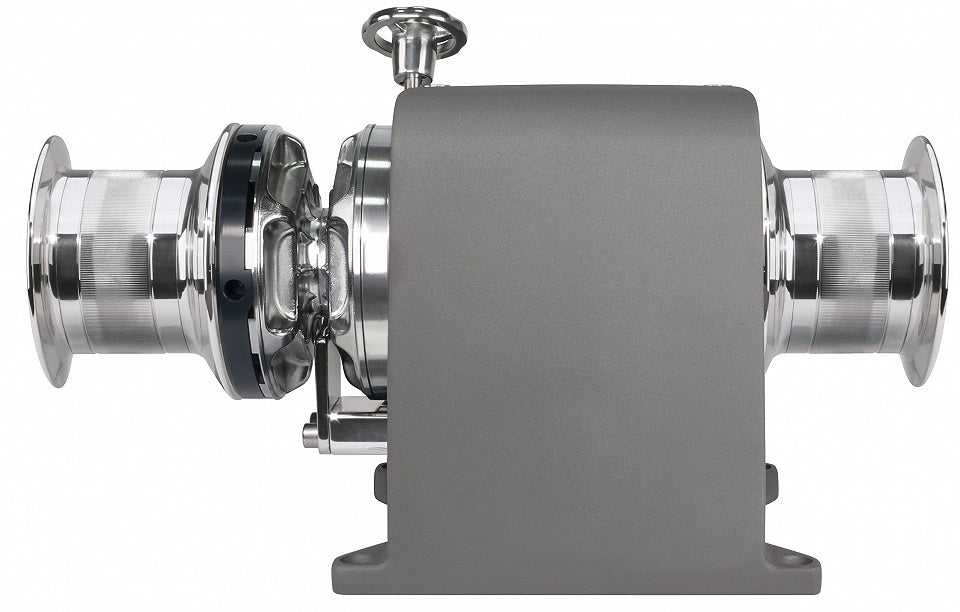

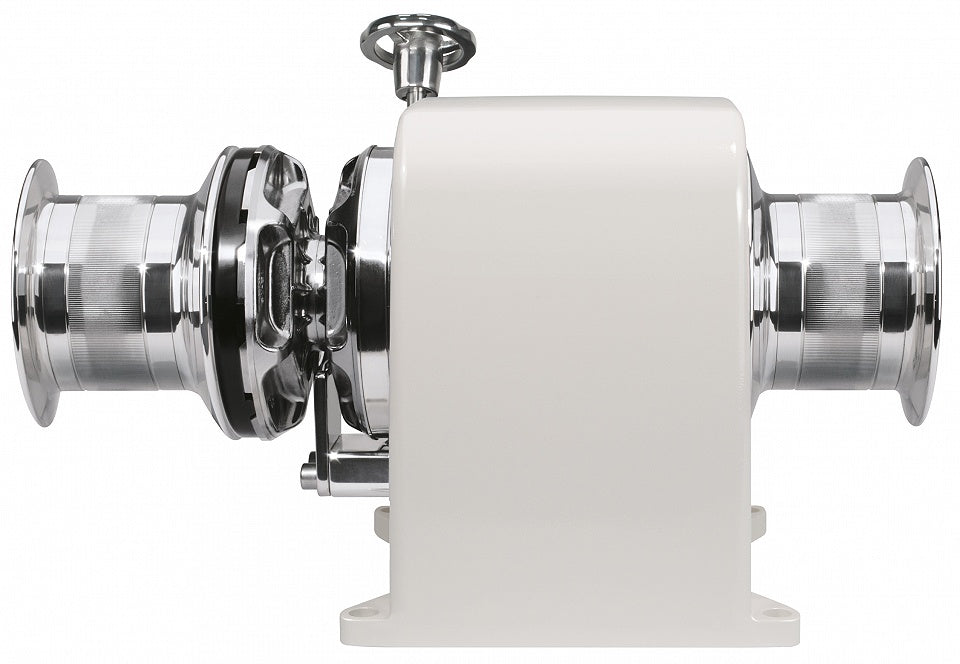

XD / BD
Heroes - HR5 - 2300/D/DBHR5 170-2300-3000

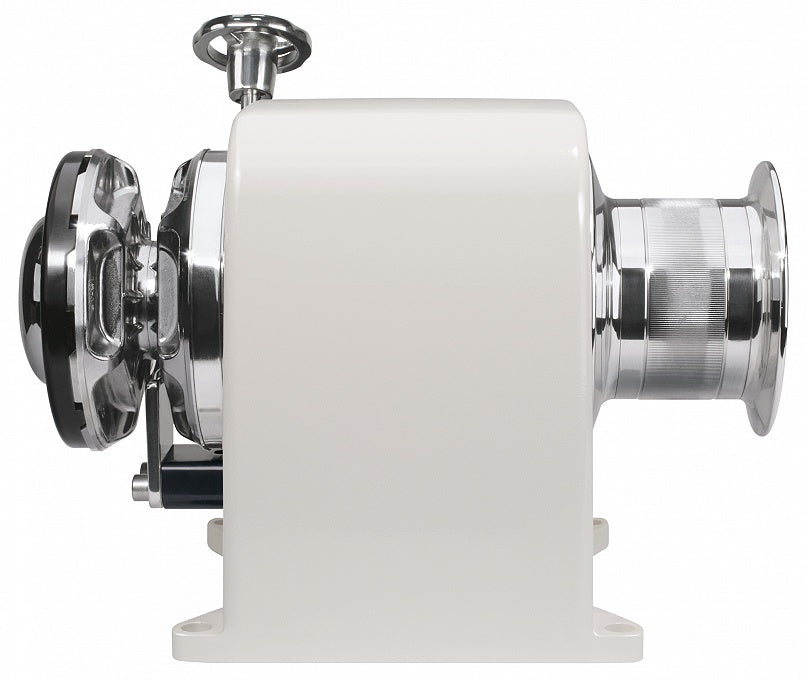

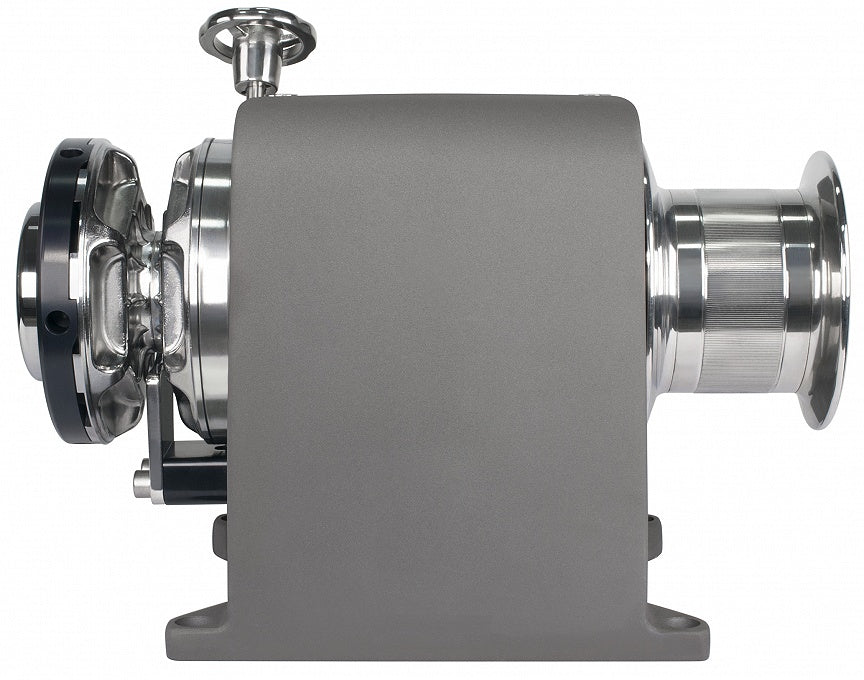

XD / BX
Heroes - HR5 - 2300/D/DBHR5 170-2300-3000

XB / BX

Supplied accessories standard

Stainless steel handle
Stainless steel handle

Optional accessories

Hydraulic magnetic
circuit breaker
UP/DOWN
control board
Foot
Switches
Proportional
control
handheld
remote control
Chain
counters
Radio remote
control
