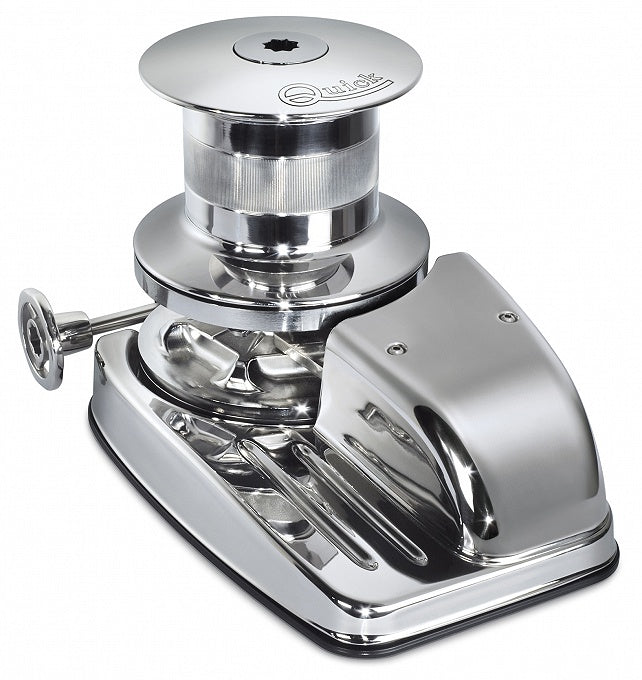

Duke DK6 4000ACDY - 4000W Windlass for 230/400V Systems with 14mm gypsy Left chain pipe With drum Ø 200 mm

Quick

Recommended Retail Price
£7,106.34 Inc. VAT

Online Price (inc. VAT)
£6,237.24

Part Number: FSDK40TRDY14A00
Out Of Stock - Available to Back Order ONLY - Lead Times May Vary.

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

Quick




  • Vertical windlasses
  • Stainless steel Aisi 316 and anodized aluminium base
  • Stainless steel Aisi 316 drum and gypsy cover
  • With and without drum
  • Integrated sensor and magnet for chain counter
  • Safety mechanical band brake
  • Anodized aluminium gearbox
For boats from 18 to 32 meters (60 - 105 ft)
Duke 3000 W DC 18 - 27 m 60 - 89 ft
Duke 3500 W DC 22 - 29 m 75 - 95 ft
Duke 4000 W AC 18 - 29 m 60 - 95 ft
Duke 5500 W AC 22 - 32 m 75 - 105 ft
Duke Hydro   20 - 32 m 60 - 105 ft
The indication may vary according to the boat type and the anchor-rode type
Gypsy and Drum Ø 200 mm / 7" 7/8
GYPSY 12-13 mm 14 mm - 1/2" 16 mm 12,5 mm
CHAIN 12 mm 13 mm 7/16" 14 mm 14 mm 1/2"" 16 mm 16 mm 12,5 mm
ISO DIN 766 G4 DIN 766 ISO G4 DIN 766 ISO STUDLINK
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick®" system.
Standard version Duke 4000 / 4000 D
Motor power 4000 W AC
Motor supply voltage 230/400 V THREE-PHASE*
Maximum pull 4000 Kg
8818 lb
Maximum working load 1500 Kg
3307 lb
Absorption @ working load 12 A
Maximum chain speed (1) 20 m/min
65.7 ft/min
Weight - Duke - [without drum] 87 kg
191.8 lb
Weight - Duke D - [with drum] 92 kg
203 lb
+ On request available 230V Single-phase motor (for power up to 3000W)
2) Measurements taken with a gypsy for a 14 mm chain

Dimensions

Duke - DK6 XY - 4000/4000D AC

Supplied accessories standard

Stainless steel handle

Optional accessories

Brake control with handwheel

Chain stopper

electric connection
box

Foot
Switches

handheld
remote control

Chain
counters

Radio remote
control


Electric drive
system
UP/DOWN
control board
Proportional
control
