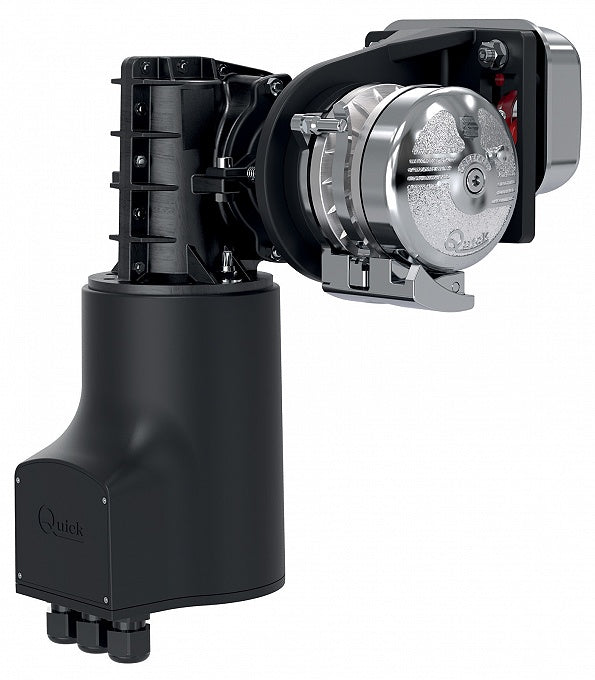

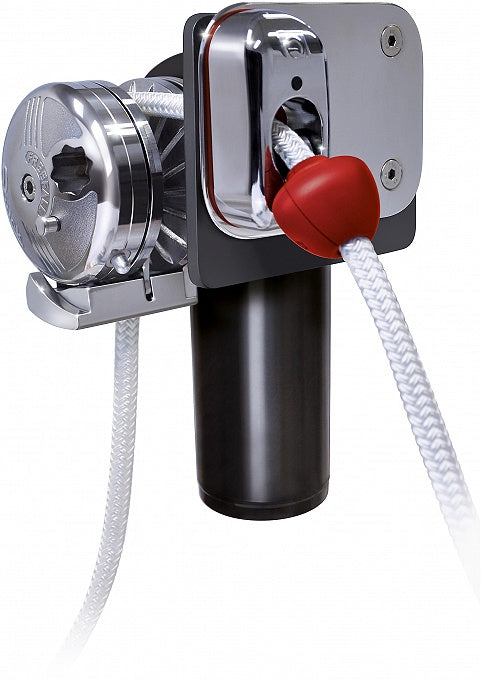

Balder BL2R P 1224F X - 1200W Windlass for 24V Systems rope only gypsy , freefall

Quick

Recommended Retail Price
£2,010.08 Inc. VAT

Online Price (inc. VAT)
£1,778.02

Part Number: FSBLD1224000B00
Out Of Stock - Available to Back Order ONLY - Lead Times May Vary.

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

Quick

  • Rope only windlasses
  • Maximum flexibility of installation
  • AISI 316 Stainless steel and chromed bronze
  • Automatic system of anchor-rode free-fall
  • Supplied with rope guide device
  • Right or left gypsy fitted in a mounting bracket
  • Watertight motor (IP67)
  • Technopolymer gearbox
For boats from 6 to 14 meters (19.7 - 46 ft)
BL2 R 600 W 6 - 10 m 19.7 - 32.8 ft
BL2 R 900 W 9 - 12 m 29.5 - 39.4 ft
BL2 R 1200 W 11 - 14 m 36 - 46 ft

Balder FF is the ideal windlass to be installed at the stern thanks to the special mounting kit. However it also adapts perfectly to any requirement and allows several combinations.
GYPSY
ROPE 12 mm 14 mm 16 mm
Recommended leaded rope

Supplied accessories standard

Mounting Bracket

Contactor units

Nylon handle
Models T6315-12 T6315-24  T6415-12  T6415-24
600 W     12 V 24 V
900 W 12 V 24 V
1200W 12 V 24 V

Optional accessories


The Automatic Stop kit allows you to automatically stop the anchor on its way up leaving it in its stowed position. The Automatic Stop is a simple system composed of a thru-hull fi tting equipped with a sensor and a composite shell, that is easily fi xed
to the leaded rope, equipped with magnets.
The rope will run freely until the magnets don’t get in contact with the sensor which again will automatically stop the motor by interrupting the electrical circuit.





Safety rope
stopper
Thru-hull
T1
Wall Plate
Thru-hull
T2
Leaded Rope

Hydraulic magnetic
circuit breaker
UP/DOWN
control board
Foot
Switches
handheld
remote control
Radio remote
control
Model BL2R P FF 1200 X/Y
MOTOR OUTPUT 1200 W
Motor Supply voltage 12 V 24 V
Maximum working load 420 Kg / 926 lb 420 Kg / 926 lb
Working load 140 Kg / 308.6 lb 160 Kg / 352.7 lb
Absorption at working load 130 A 75 A
Maximum speed 28-30 m/min
91-98 ft/min
Weight 17,7 Kg / 39 lb

Dimensions

BALDER BL2 R P - 1200

Supplied accessories standard

Mounting Bracket

Contactor units

Nylon handle
Models T6315-12 T6315-24  T6415-12  T6415-24
600 W     12 V 24 V
900 W 12 V 24 V
1200W 12 V 24 V

Optional accessories


The Automatic Stop kit allows you to automatically stop the anchor on its way up leaving it in its stowed position. The Automatic Stop is a simple system composed of a thru-hull fi tting equipped with a sensor and a composite shell, that is easily fi xed
to the leaded rope, equipped with magnets.
The rope will run freely until the magnets don’t get in contact with the sensor which again will automatically stop the motor by interrupting the electrical circuit.





Safety rope
stopper
Thru-hull
T1
Wall Plate
Thru-hull
T2
Leaded Rope

Hydraulic magnetic
circuit breaker
UP/DOWN
control board
Foot
Switches
handheld
remote control
Radio remote
control
