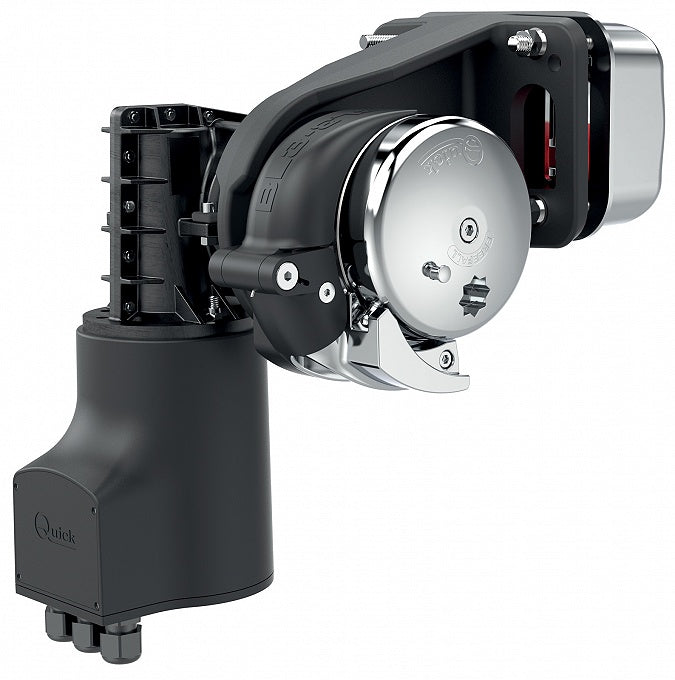

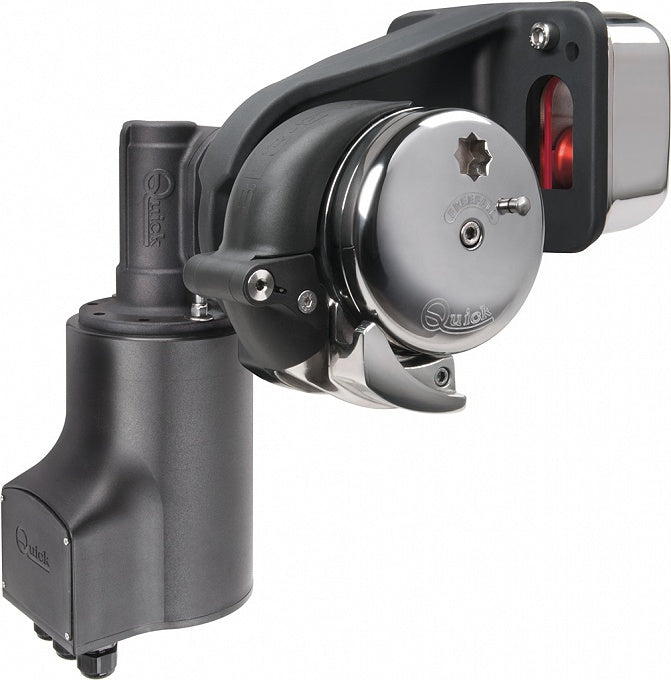

Balder BL3 P 924 X - 900W Windlass for 24V Systems with 08 mm gypsy freefall

Quick

Recommended Retail Price
£1,840.17 Inc. VAT

Online Price (inc. VAT)
£1,629.35

Part Number: FSBL30924X08B00
Out Of Stock - Available to Back Order ONLY - Lead Times May Vary.

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

Quick

  • Horizontal windlasses
  • Maximum flexibility of installation
  • AISI 316 Stainless steel and chromed bronze
  • Integrated sensor and magnet for chain counter
  • Rope and chain on a single gypsy
  • Automatic system of anchor-rode free-fall
  • Supplied with chain guide device
  • Supplied with pressure lever
  • Right gypsy fitted in a mounting bracket.
  • Watertight motor IP67 (IP66 BL3 600)
  • Anodized aluminium gearbox (1500 W)
  • Technopolymer gearbox (600 W / 900 W / 1000 W)

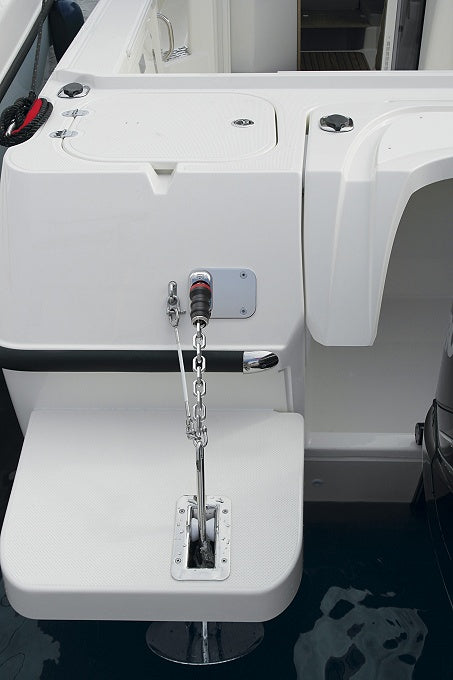

Balder FF is the ideal windlass to be installed at the stern thanks to the special mounting kit. However it also adapts perectly to any requirement and allows several combinations.
GYPSY 6 mm 8 mm - 5/16" 10 mm - 3/8"
CHAIN 6 mm 6 mm 8 mm 8 mm 5/16" 5/16" 10 mm 3/8"
DIN 766 ISO DIN 766 ISO G4 BBB ISO (P.30) G4

Supplied accessories standard

Mounting Bracket

Contactor units

Nylon handle

Mounting
bracket

Models T6315-12 T6315-24  T6415-12  T6415-24
600 W     12 V 24 V
900 W 12 V 24 V
1200W 12 V 24 V
1500W 12 V 24 V

Optional accessories


The Automatic Stop kit allows you to automatically stop the anchor on its way up leaving it in its stowed position. The Automatic Stop is a simple system composed of a thru-hull fitting equipped with a sensor and a composite shell, that is easily fixed to the leaded rope, equipped with magnets.
The rope will run freely until the magnets don’t get in contact with the sensor which again will automatically stop the motor by interrupting the electrical circuit.

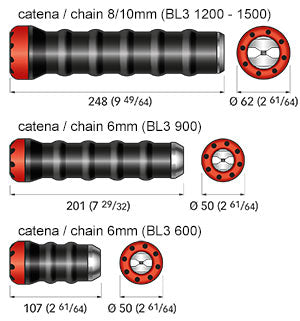

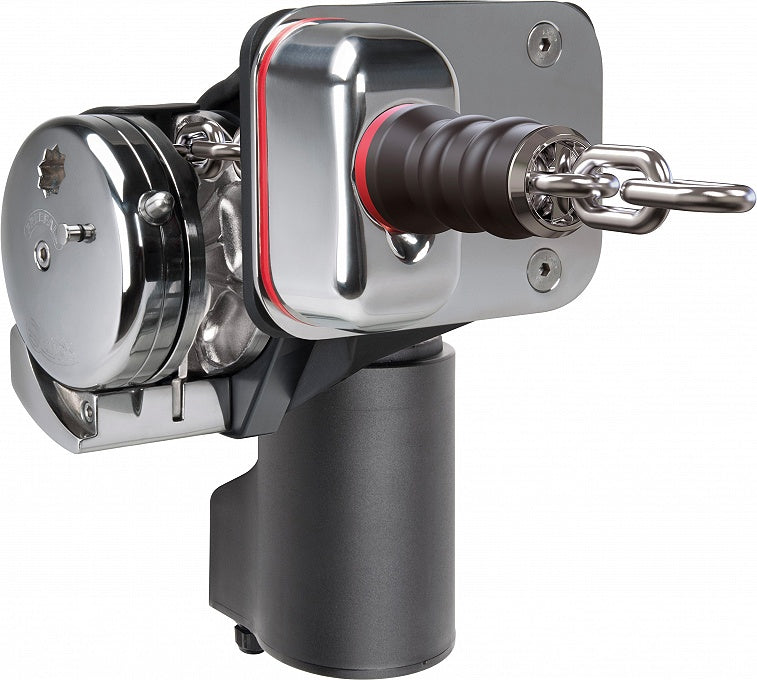

Safety stopper for chain

Thru-hull

Wall plate



Hydraulic magnetic
circuit breaker

UP/DOWN
control board

UP/DOWN Switches

handheld

Chain Counter

Radio remote
control

Base Model BL3 P FF 900 X
Motor power 900 W
Motor supply voltage 12 V 24 V
Maximun pull 850 Kg
1864 lb
850 Kg
1864 lb
Maximum working load 250 Kg
551.1 lb
300 Kg
661.4 lb
Working load 80 Kg
176.4 lb
100 Kg
220.5 lb
Absorption @ working load 90 A 55 A
Maximum chain speed 27,4 m/min
89.9 ft/min
26,4 m/min
86.4 ft/min
Chain speed @ workink load 14,4 m/min
47.2 ft/min
14,8 m/min
48.5 ft/min
Weight 18,8 Kg
41 lb
18,8 Kg
41 lb
Boat length 5-9 m
16-29 ft
5-9 m
16-29 ft

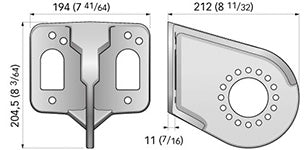

Dimensions

BALDER BL3 / BL3 P - 900
BALDER BL3 / BL3 P - 900

Supplied accessories standard

Mounting Bracket

Contactor units

Nylon handle

Mounting
bracket

Models T6315-12 T6315-24  T6415-12  T6415-24
600 W     12 V 24 V
900 W 12 V 24 V
1200W 12 V 24 V
1500W 12 V 24 V

Optional accessories


The Automatic Stop kit allows you to automatically stop the anchor on its way up leaving it in its stowed position. The Automatic Stop is a simple system composed of a thru-hull fitting equipped with a sensor and a composite shell, that is easily fixed to the leaded rope, equipped with magnets.
The rope will run freely until the magnets don’t get in contact with the sensor which again will automatically stop the motor by interrupting the electrical circuit.










Safety stopper for chain

Thru-hull

Wall plate



Hydraulic magnetic
circuit breaker

UP/DOWN
control board

UP/DOWN Switches

handheld

Chain Counter

Radio remote
control
