Lynx Smart BMS 500amp NG (M10) - LYN034160310 - For use with NG series batteries

Victron

Recommended Retail Price
£1,048.80 Inc. VAT

Online Price (inc. VAT)
£834.38

Part Number: LYNX-BMS-LI-0500-M10-NG

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

Victron

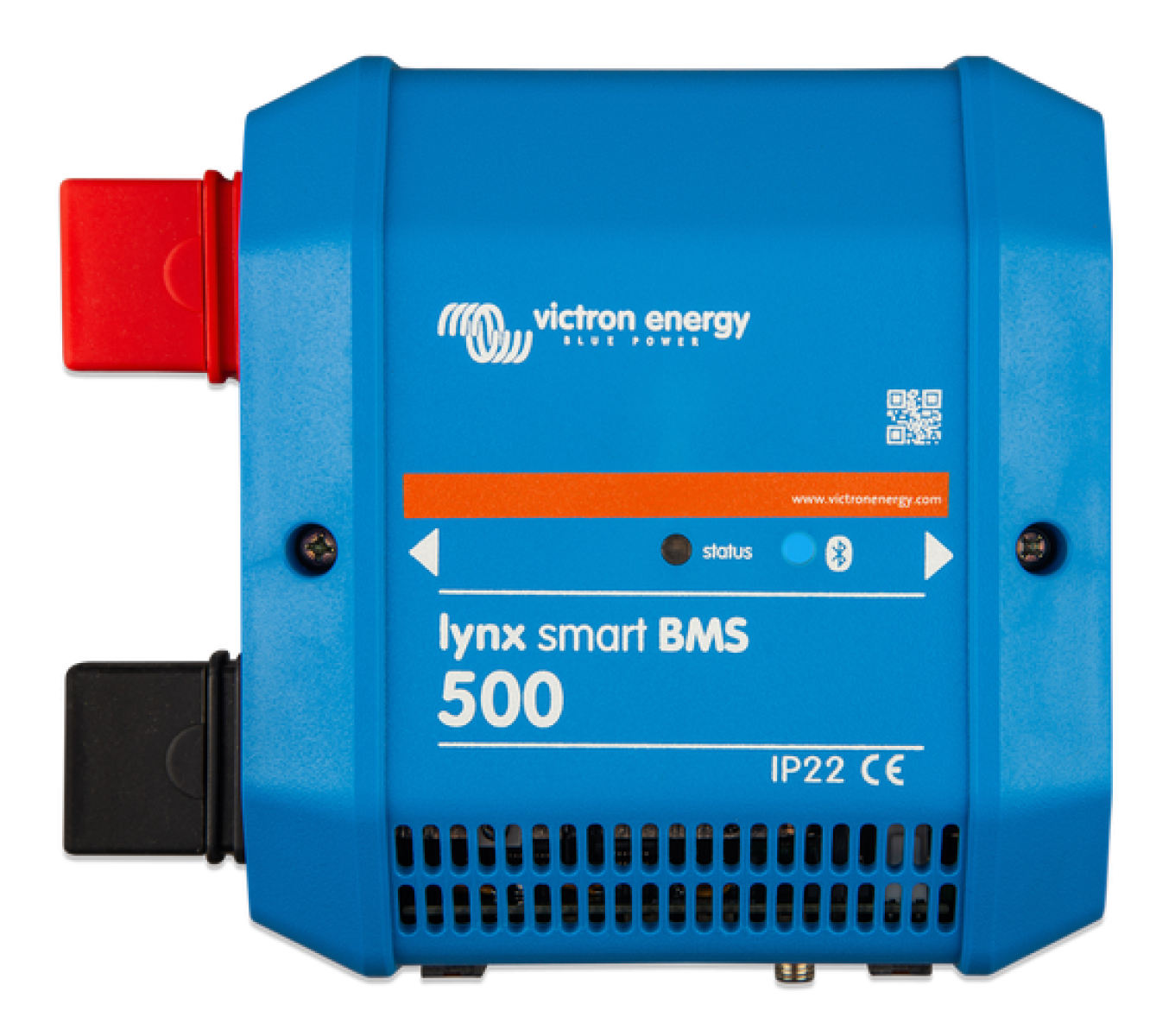

Lynx Smart BMS 500amp NG (M10) - LYN034160310 For use with NG series batteries

Product Information

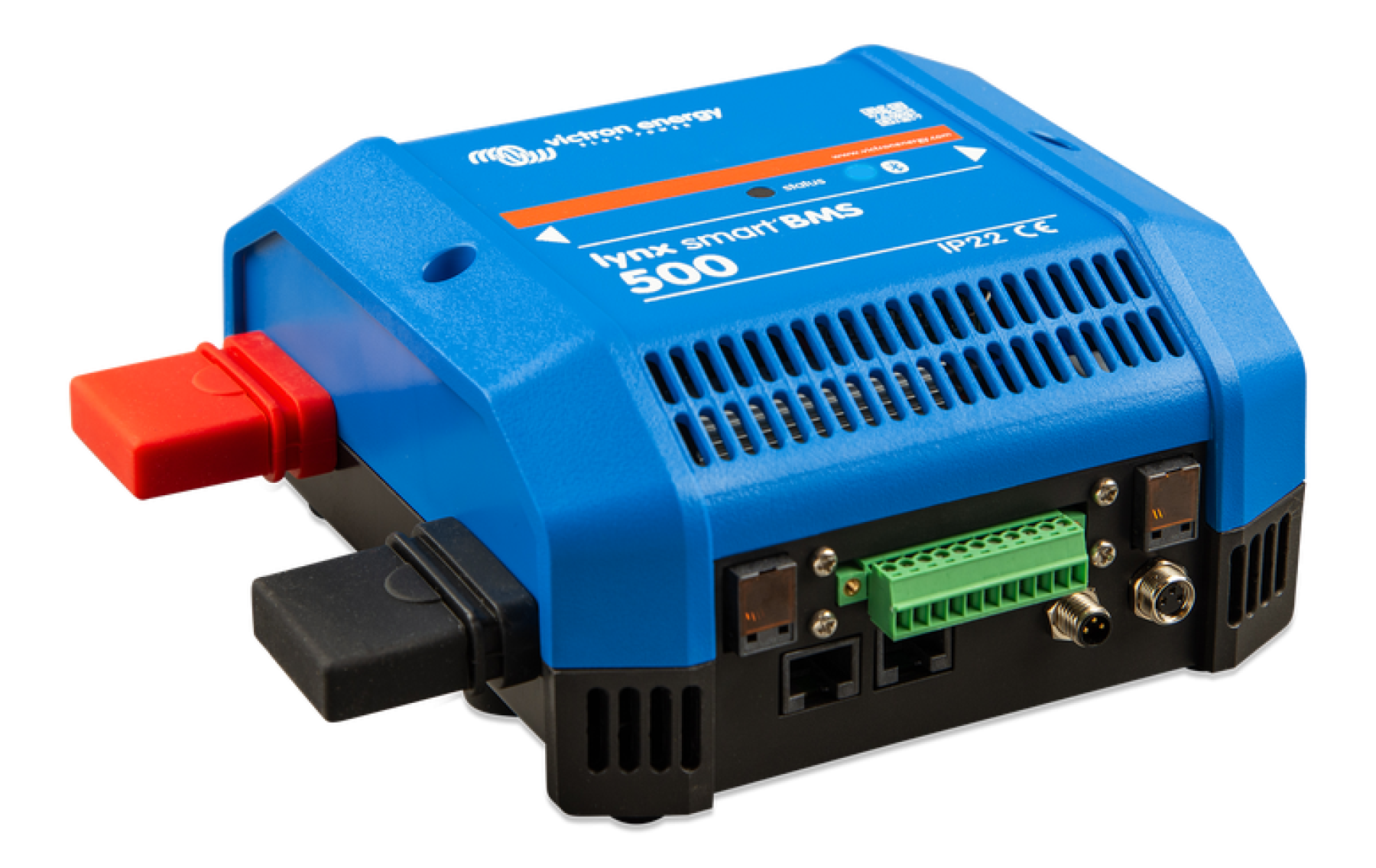

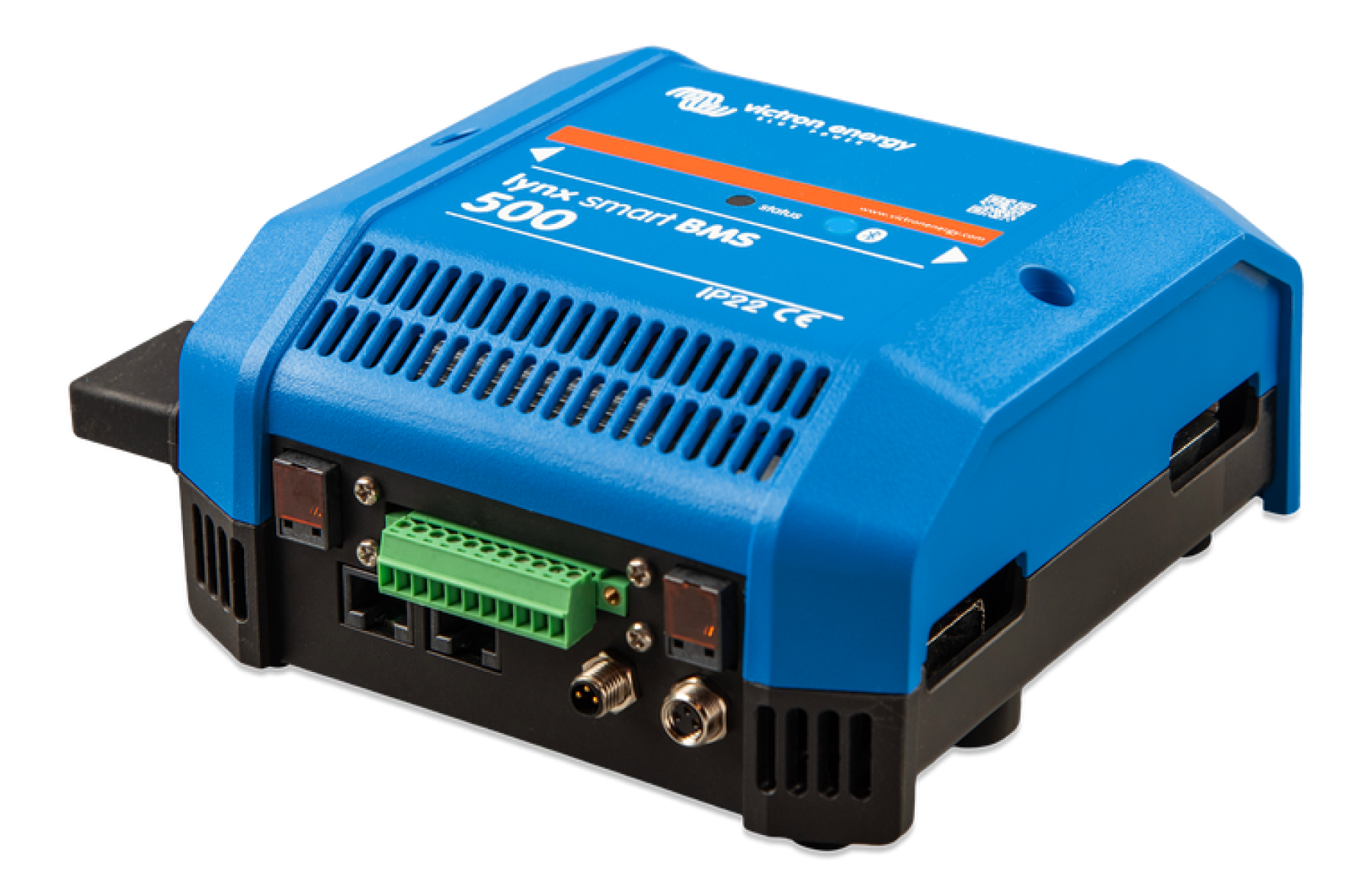

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium NG series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A and 1000A (with M10 busbar connections).


Out of the various available BMSes, the Lynx Smart BMS is the most feature rich and complete option and integrates seamlessly into the Lynx Distributor system. It is available in 500 A and 1000 A (M10) versions.


This unit will also work with the new Lithium NG Batteries.


The main features are:


Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.


Battery monitor, indicating state of charge percentage and more data.


Pre-alarm signal: provide a warning before the system shuts down due to -for example - a low cell.


Bluetooth for use with our VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.


Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.


The Lynx Smart BMS is part of the modular Lynx Distribution system.


Programmable relay


The relay can be used either as an alarm relay (combined with the pre-alarm) or to control an alternator via its external regulator (ignition cable). In Alternator ATC mode, the relay will only activate when the contactor is closed.


VE.Can and NMEA 2000 data communication



VE.Can allows for easy connection (standard RJ45 network cable) and communication with a GX device. Since the CANbus protocol is based on NMEA 2000 (and J1939), it is easy to integrate into a marine network and feed your marine MFD with data (requires a VE.Can to NMEA 2000 micro-C male cable).


Lynx Distributor fuse monitoring


Read out fuse status and receive an alarm in case a fuse is blown. The Lynx Smart BMS monitors up to 4 connected Lynx

Distributors and their fuses via VictronConnect or a GX device.


In this video we do a deep dive on the Victron Lynx Smart BMS 500. What's the benefit? How does it work? How do you set it up? It's all in the video:





Please see the datasheet in the Additional Information to compare model specifications.

PDF Icon

Datasheet-Lynx-Smart-BMS-EN


Manufacturer Part Number: LYN034160310
