VETUS E-LINE 22kW Inboard Electric Propulsion Motor (ELINE220S)

VETUS

Recommended Retail Price
£11,913.00 Inc. VAT

Online Price (inc. VAT)
£11,913.00

Part Number: ELINE220S

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns
Vetus Logo

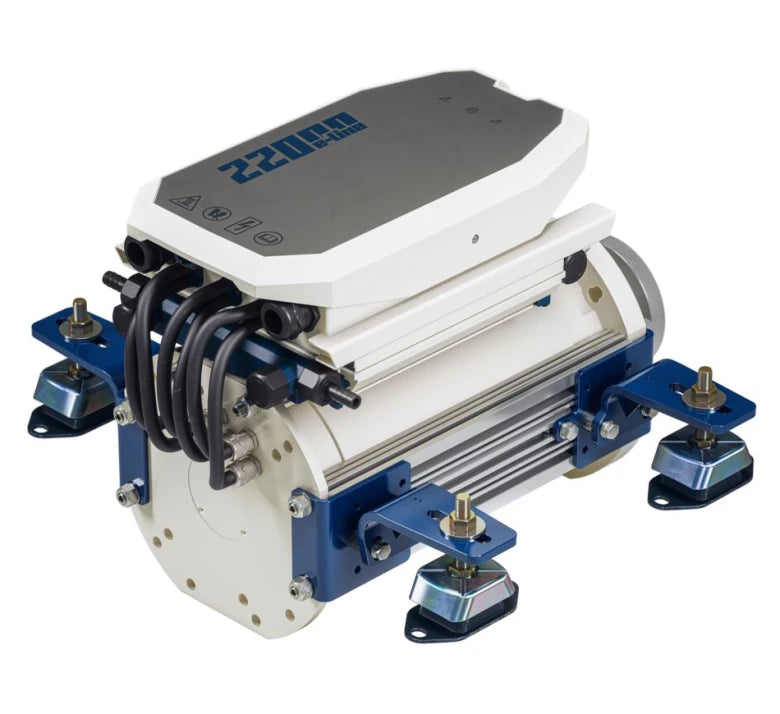

The E-LINE 22kW Inboard Electric Propulsion Motor is a liquid-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduces energy consumption.

It delivers the highest output within our electric range and is suitable for every vessel with a shaft drive, whether newly built or undergoing a refit. This makes it the ideal choice for boaters who value strong performance, excellent efficiency and complete freedom on the water.

This electric propulsion set is supplied as a complete system that is ready to install. In addition to the motor, this electric propulsion set with code ELINE220S includes essential components such as cables and standard monitoring equipment. It provides a full out of the box solution that requires only the selection of your preferred control lever and cooling system.

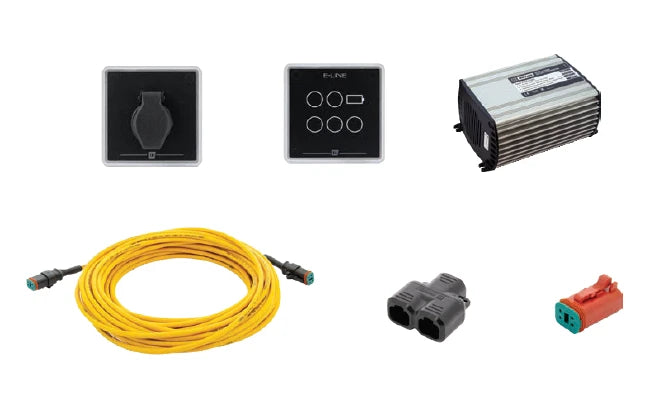

Set consists of

  • E-LINE 22 kW motor
  • V-CAN monitoring panel
  • V-CAN key switch panel
  • Converter - 48VDC-12VDC, 360W
  • V-CAN cable 1 m, halogen free
  • V-CAN-bus 3-point hub
  • V-CAN termination resistor
  • V-CAN cable 5 m, halogen free

Choose your cooling

The E-LINE 22 kW can be cooled with fresh surface water or a keel cooler. Use surface water cooling in clean fresh water. In salty or contaminated water, two keel coolers are recommended.

Advanced Monitoring Sets

Find additional digital monitoring sets that can upgrade your boating experience to a whole new level. With displays to indicate precise movement and positioning you can become the master of your vessel.


Specifications

Max. speed (RPM) 1600
Max. torque (Nm) 130
Motor type Brushless induction motor
Voltage (V) 48
Indicative comparable combustion engine (hp) 30
Indication for suitable boat length Up to 15 m (50 feet) or 20 ton
CAN bus V-CAN
Maximum output power 22 kW
Maximum input current draw 580 A
Indicative energy consumption 1 kWh @ 6 km/u (3,5 kt)
Cooling systems Liquid cooled
Liquid cooling system connections 12,7 mm (1/2”) (intake and outlet)
Weight (kg) 93
Length (mm) 545
Height (mm) 371
Width (mm) 540

You can view the Page for this Product in the VETUS Catalogue here:

View the Page for this Product in the VETUS Catalogue

You can also view the Category Section in the VETUS Catalogue here:

View the Category Section in the VETUS Catalogue

You can also view the entire VETUS Catalogue here:

View the entire VETUS Catalogue
