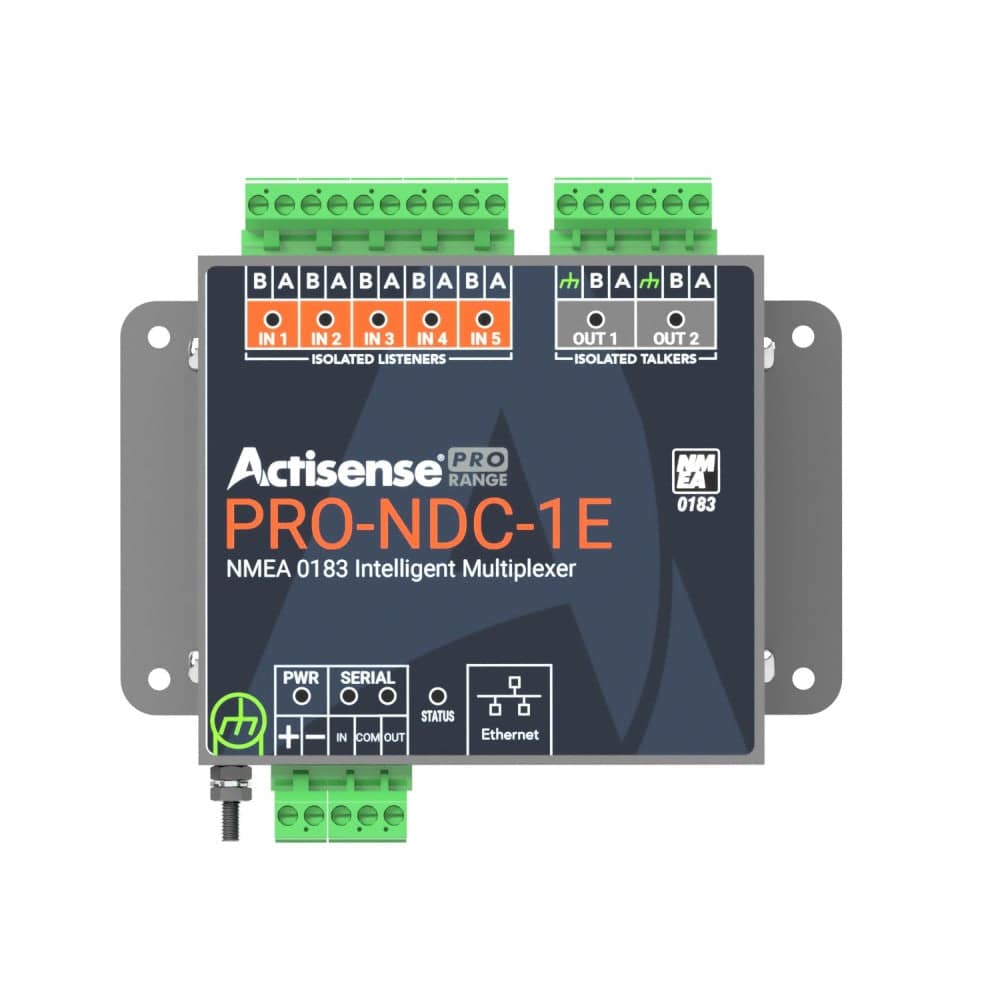

Actisense PRO-NDC-1E Intelligent NMEA 0183 Multiplexer
Actisense
Recommended Retail Price
£421.60 Inc. VAT
Online Price (inc. VAT)
£394.07
- Description
- Ask a Question
- Reviews
- Delivery
- Returns
The PRO-NDC-1E is more than just an NMEA 0183 Combiner/ Multiplexer; it provides an installer with a highly flexible platform that can be used to solve many NMEA 0183 interconnectivity headaches.
- 5 OPTO-Isolated NMEA 0183 inputs
- 2 ISO-Drive NMEA 0183 outputs
- Dedicated bi-directional Serial port (fully isolated utiising ISO-Drive technology)
- Serial port can be used as additional input / output
- Ethernet port supports direct and network connection
- NMEA 0183 streaming via Ethernet
- Configurable input and output baud rates
- Allows Data combining and rate conversion
- 2 independent Autoswitch virtual inputs with priority
- Isolation to battery supply
- Diagnostic LED’s
- Optional DIN rail mount
Technical Specifications
XPower Supply | |
---|---|
Input Supply Voltage | 10 to 35 V DC |
Input Supply Current | 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) |
Input Protection | Continuous reverse polarity, transient overvoltage and ESD protection |
Power Indicator | LED, Blue – indicates unit is functioning correctly |
Input Supply Connector | Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) |
NMEA 0183 Port – Listener & Talker | |
---|---|
Number of Listener / Input Ports | 5 isolated NMEA 0183 Listeners |
Number of Talker / Output Ports | 2 isolated NMEA 0183 Talkers |
Compatibility | Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible |
Speed / baud rate | 4800 to 38400 bps |
Talker Output Voltage Drive | >= 2.2V (differential) into 100 ohm |
Talker Output Current Drive | 20 mA maximum per output |
Talker Output Protection | Short circuit and ESD |
Talker Data Indicator | LED, Orange (Flashes at data rate) |
Listener Input Voltage Tolerance | -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) |
Listener Input Protection | Current limited, overdrive protection to 40 VDC and ESD protection |
Listener Data Indicator | LED, Green (Flashes to indicate valid input) |
Connectors | Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG) |
Serial Port | |
---|---|
Compatibility | RS422 & RS232 compatible. RS485 Listener compatible |
Speed / baud rate | 115200 bps |
Output Voltage Drive | >= 2.1V (differential) into 100 ohm |
Output Current Drive | 20 mA max. |
Output Protection | Short circuit and ESD |
Input Voltage Tolerance | -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) |
Input Protection | Current limited, overdrive protection to 40 VDC and ESD protection |
Data Indicators | LED’s: Green = Receive, Orange = Transmit |
Connectors | Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) |
Ethernet Port | |
---|---|
Host Interface | 10/100BaseT, automatic polarity detection |
Supprted Protocols | TCP/IP for configuration and firmware updatingTCP/IP and UDP for NMEA 0183 comms |
Indicators | Green = Link/Activity, Yellow = 100 Mbps |
Connector | RJ45 |
Isolation | |
---|---|
NMEA 0183 Listener | Uses IsoDriveTM, Hi-Pot tested to 1000V |
NMEA 0183 Talker | Uses IsoDriveTM, Hi-Pot tested to 1000V |
Serial Port | Uses IsoDriveTM, Hi-Pot tested to 1000V |
Ethernet Port | 2kV for 60s |
Mechanical | |
---|---|
Housing Material | 316 Stainless Steel |
Dimensions | 139mm (W) x 98mm (H) x 26mm (D) |
Weight | 360g |
Mounting | Bulkhead mount or DIN rail mount (DIN kit 1) |
Approvals and Certifications | |
---|---|
EMC | IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 |
Compass Safe Distance | 300mm |
Type Approval Certificate | TBD |
Operating Temperature | -25 to +70°C |
Storage Temperature | -40 to +85°C |
Relative Humidity (RH) | 95% @ 55°C |
Environmental Protection | IP40 |
Guarantee | 5 Years |
The PRO-NDC-1E is more than just an NMEA 0183 Combiner/ Multiplexer; it provides an installer with a highly flexible platform that can be used to solve many NMEA 0183 interconnectivity headaches.
Rugged, Robust, Type Approved Multiplexer with powerful routing allows any of the inputs to be routed to any output, combining data if required. Advanced features allow data rate conversion, auto-switching and advanced sentence-based routing and blocking.
The configuration tool is accessible via any popular web browser using the Ethernet port, which supports both direct and network connections. Industry leading isolation is provided on all inputs and outputs as standard so that connected devices safely avoid hazardous ground loops, the number one cause of product failure in NMEA 0183 networks. This makes the PRO-NDC-1E robust enough to handle any NMEA 0183 installation.
Pluggable connectors allow new devices to be easily installed without needing to remove the PRO-NDC-1E from its mounted location. An optional professional DIN rail mounting mechanism keeps the PRO-NDC-1E secure in high vibration environments. Integrated LEDs provide feedback on basic status while advanced statistics are available via a Web Browser.
