RELiON RB200 Lifepo4 Lithium Ion Battery (12V / 200Ah / 6SC)
RELiON
Recommended Retail Price
£2,095.21 Inc. VAT
Online Price (inc. VAT)
£1,063.38
- Description
- Ask a Question
- Reviews
- Delivery
- Returns

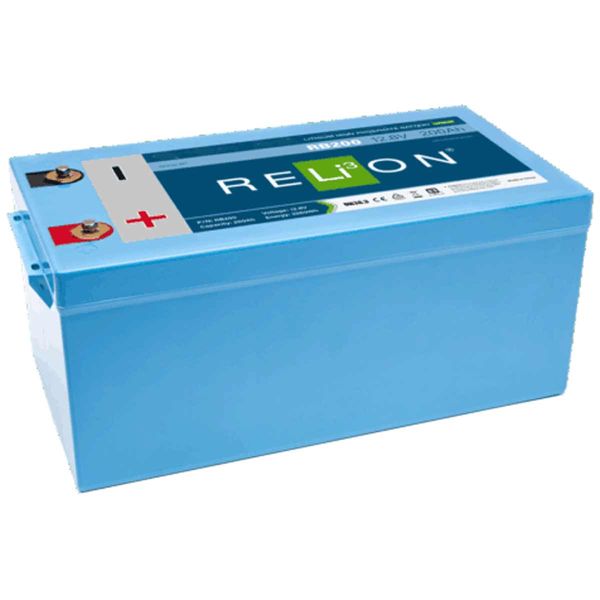

RELiON RB200 Deep Cycle Lithium LiFePO4 Battery 12V 200Ah
RELiON 12V, 200Ah lithium deep cycle battery. This Group 8D lithium iron phosphate (LiFePO4) battery is ready to replace your heavy lead-acid battery bank in your sailboat, RV or solar energy system. It weighs only 61 lbs for a true 200 Amp Hour lithium replacement battery that provides 100% of its rated capacity. The RB200 gives you the flexibility to replace several small, heavier lead-acid batteries in a single high capacity unit.
LiFePO4 batteries are lighter, take less space and last longer. While the up-front cost is higher than Gel, AGM or Lead-Acid the overall cost of ownership is lower over time because they require no maintenance and they have up to 10x longer life.
The RB200 offers high, reliable performance in any climate or condition for RVs, campers, sailboats, catamarans, battery-based solar systems, and other deep cycle applications.
All RELiON Batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS ensures a long lifetime, safe handling - and high-accuracy State of Charge (SOC) calculations.
Applications: Marine, Recreational Vehicles, Solar & Electric Vehicles
Electrical Specifications
Capacity @ 25A: 480 min
Resistance: 30 mΩ @ 50% SOC
Efficiency: 99%
Self Discharge: <3% per Month
Maximum Modules in Series: 6
Mechanical Specifications
Cell Type: Cylindrical
Chemistry: LiFePO4
Discharge Specifications
Maximum Continuous Discharge Current: 100 A
Peak Discharge Current: 200 A (7.5 s ±2.5 s)
BMS Discharge Current Cut-Off: 280 A ±50 A (9 ±4 ms)
Recommended Low Voltage Disconnect: 11 V
BMS Discharge Voltage Cut-Off: 8 V (2.0 ±0.08 vpc) (140 ±60 ms)
Reconnect Voltage: 9.2 V (2.3 ±0.1 vpc)
Short Circuit Protection: 200-600 µs
Charge Specifications
Recommended Charge Current: 10 A - 50 A
Maximum Charge Current: 100 A
Charge Current 32°F to 14°F (0 to -10 °C): ≤0.1 C
Charge Current -4°F to 14°F (-20 to -10 °C): ≤0.05 C
Recommended Charge Voltage: 14.2 V - 14.6 V
BMS Charge Voltage Cut-Off: 15.6 V (3.9 ±0.025 vpc) (1.1 ±0.4 s)
Reconnect Voltage: 15.2 V (3.8 ±0.05 vpc)
Balancing Voltage: 14.4 V (3.6 ±0.025 vpc)
Temperature Specifications
Discharge Temperature: -4 to 140 °F (-20 to 60 °C)
Charge Temperature: -4 to 113 °F (-20 to 45 °C) *Refer to charge currents below 0°C (32°F)
Storage Temperature: -4 to 140 °F (-20 to 60 °C)
BMS High Temperature Cut-Off: 176 °F (80 °C)
Reconnect Temperature: 122 °F (50 °C)
Specifications
Capacity Description | 200 Ah |
Material | ABS Case |
Style | Lithium-Ion |
Unit of Sale | Single Unit |
Torque | 9 to 11 N-m (80 - 100 in-lbs) |
Brand | RELiON |
Application | Domestic |
Terminal Type | Single, Stud Terminals: M8 x 1.25 |
Voltage Description | 12.8V DC |
Wattage | 2.560kWh |
Approvals | CE, UN38.3, UL1642 & IEC62133 |
Height Description | 220mm (8.7") |
Width | 522mm |
Depth | 267mm (10.5") |
Weight | 27.7 kg (61.1 lbs) |
More Info/Downloads
Manufacturer Part Number: REL-RB200
