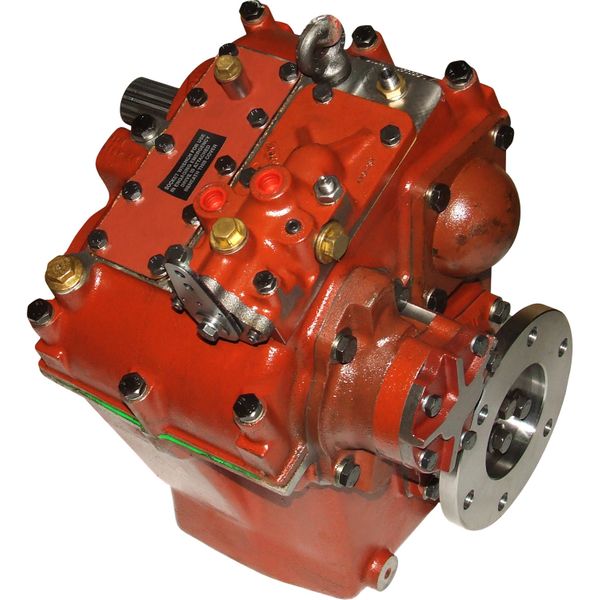

PRM 1000D Drop Centre Marine Gearbox (Ahead Ratio 4.0:1) PRM-1000D4
PRM
Recommended Retail Price
£7,235.54 Inc. VAT
Online Price (inc. VAT)
£6,421.55
- Description
- Ask a Question
- Reviews
- Delivery
- Returns
Full hydraulic operation: offset or down angle output shaft.
The PRM1000 marine gearbox is purpose built for use in both pleasure craft and commercial boats; its twin countershaft design provides separate oil-operated multi-disc clutches (which need no adjustment) for ahead and astern drive allowing full rated power to be transmitted continuously in either direction.
To cater for the widest possible variety of boats the PRM1000 is offered either with output shaft, offset or 10° down angle output shaft. Reduction ratios available are 1.53:1, 2.03:1, 2.86:1, and 4.00:1 (4.00:1 reduction is not available on down angle gearbox) all of which can provide either left-hand or right-hand propeller rotation in "ahead", making the gearbox particularly well suited to twin engine installations.
The gearcase is constructed of high grade cast iron, internally ribbed for rigidity and strength, and consists of two separate halves to facilitate servicing, the oil pump and hydraulic control valves being externally mounted for easy accessibility.
The hydraulic operating system functions on normal lubricating oil of the same viscosity as that used in the engine, avoiding the need to use automatic transmission fluid, and ensures rapid response to movements of the operating lever for good boat handling. The operating lever has a positive neutral detent and is suitable for use with proprietary single lever remote control operating systems.
Robust and reliable, the hydraulic system is nevertheless provided with a mechanical lock-up device for added security, so that in the unlikely event of hydraulic failure the boat can be brought safely back to port. Access to this device is via a detachable cover located on top of the main gearcase.
A special feature of the PRM1000 is the clutched power take-off which is available as an optional extra; this will power a hydraulic pump to SAE J744C type 'B' specification, thus providing an economical and space efficient means of driving on-board machinery.
An electronically operated trolling valve can be fitted, which will allow variable speed of the propeller to zero whilst allowing a maximum engine speed of up to 1200 rpm.
It is essential for the engine, transmission model, reduction ratio and propeller size to be correctly matched so that the engine can attain its rated speed appropriate to the relevant service classification without labouring.
It is also necessary to ensure the torsional compatibility of the complete propulsion system from engine through to propeller, since disregarding this may result in gear noise, particularly at low speed operation, and may even result in damage to the engine as well as the transmission components.
Operating Pressure
Minimum - 30.34 bar (440 PSI), Maximum - 33.44 bar (485 PSI). Two tapped holes 1/8" BSP on the top, and M18 on the side of the valve block are provided so that the pressure gauge can be fitted if required.
Oil Cooling
The normal operating temperature of the oil should be in the 50°C - 80°C range and should not be permitted to exceed 90°C. An oil cooler is necessary to ensure that correct operating temperatures are maintained, and two 3/8" BSP connections are provided on the valve block to allow it to be fitted. The size of the cooler required depends on a number of factors including the transmitted horsepower, operating speed, duty cycle, inlet water temperature and ambient temperature.
Propeller Thrust
Both ahead and astern thrust is carried by the output shaft bearings which are of adequate capacity for all factory approved ratings.
PRM1000 Gearbox spline: 18 teeth 12/24 DP. Oil Capacity: 4.0 litres (7.04 pints).
| Gearbox Manufacturer | PRM |
| Gearbox Model | PRM 1000D |
| Brand | PRM |
| Country of Origin | United Kingdom |
| Hydraulic or Mechanical | Hydraulic |
| Shaft Arrangement | Drop Centre |
| Warranty [Years] | 2 |
| Approximate Dry Weight | 93kg (205 lbs) (excluding adaptor, drive coupling & oil cooler) |
| Capacity | Oil Capacity: 4.0 litres (7.04 pints) (plus the amount required to fill the cooling circuit) |
| Construction | High Grade Cast Iron Gearcase |
| Gearbox Spline | 18 teeth 12/24 DP |
| Nominal Power Rating Heavy Commercial | 9.40 BHP / 100 RPM |
| Nominal Power Rating Light Commercial | 9.96 BHP / 100 RPM |
| Nominal Power Rating Pleasure | 11.50 BHP / 100 RPM |
| Ratio Ahead Stern | 4.000:1 |
| Replaces | PRM 601S, 601M, 601D |
