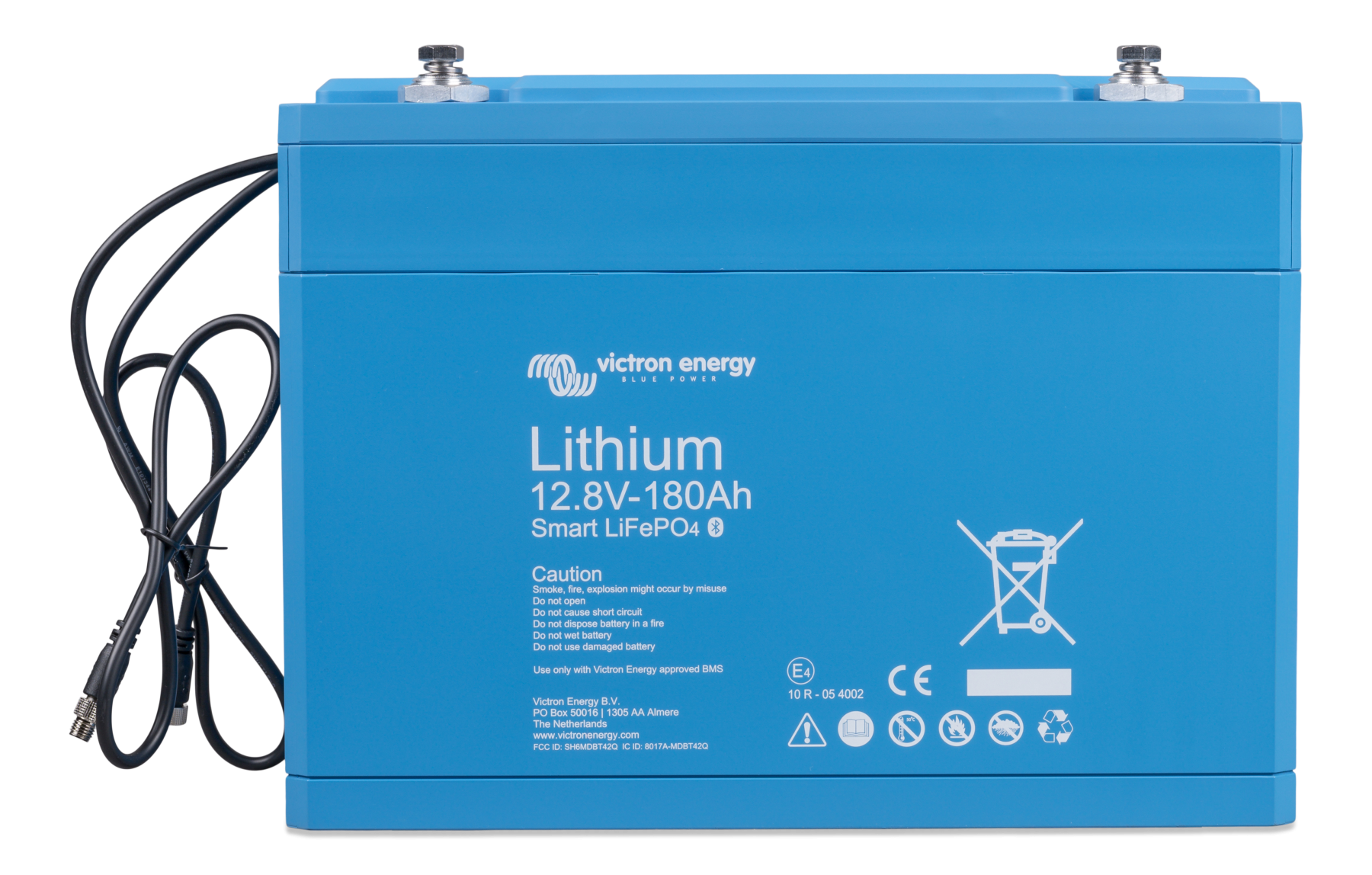

Victron Lithium Ion Battery - 12V 180Ah - Smart

Victron

Recommended Retail Price
£902.40 Inc. VAT

Online Price (inc. VAT)
£720.00

Part Number: BAT-VIC-LI-12V-180AH-A-S

Sorry, this item is out of stock - Please contact us if you would like to order this on back order as our inventory is changing all the time and we might be able to get this in for you at short notice

  • Description
  • Ask a Question
  • Reviews
  • Delivery
  • Returns

Victron

LiFePO4 Battery 12,8V/180Ah Smart (BAT512118610)

Product Information

Please note: 24 hours advanced notice is required for couriers to convey Lithium-Ion goods, in order to comply with UN3480, UN 3481 and UN3090 regulations. Please add 24 hours to your delivery e.t.a.



Lithium Battery Smart 12,8V & 25,6V


Victron Energy Lithium Battery Smart batteries are Lithium Iron Phosphate (LiFePO4) batteries and are available in 12.8 V or 25.6V in various capacities. They can be connected in series, parallel and series/parallel so that a battery bank can be built for system voltages of 12 V, 24 V or 48 V. The maximum number of batteries in one system is 20, which results in a maximum energy storage of 84 kWh in a 12 V system and up to 102 kWh in a 24V and 48V system.


A single LFP cell has a nominal voltage of 3.2V. A 12.8 V battery consists of 4 cells connected in series and a 25.6 V battery consists of 8 cells connected in series.


-With integrated cell balancing


-Can be parallel and series connected


-Bluetooth app available to monitor cell voltage and temperature


Requires one of these BMS-es:


-VE. Bus BMS / VE.Bus BMS V2 – recommended for systems with our inverter/chargers.


-smallBMS – recommended for use in small systems.


-Smart BMS 12/200 - recommended for use in Automotive and Marine systems having DC-loads and Alternators.


-Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.


-Lynx Smart BMS - recommended for use in large systems.


Why lithium-iron-phosphate?


Rugged


A lead-acid battery will fail prematurely due to sulfation:


• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).


• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime)


LFP is therefore the chemistry of choice for demanding applications.


Efficient


• In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.


• The round-trip energy efficiency (discharge from 100 % to 0 % and back to 100 % charged) of the average lead-acid battery is 80 %


Size and weight


• Saves up to 70 % in space


• Saves up to 70 % in weight


Expensive?


• LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.

PDF Icon

Datasheet-12,8-&-25,6-Volt-lithium-iron-phosphate-batteries-Smart-EN


Manufacturer Part Number: BAT512118610
